63 99 201 Replacing halogen bulb for front left or right fog light (Cooper Convertible)

WARNING: Follow instructions for handling LIGHT BULBS (EXTERIOR LIGHTING) .

Removal:

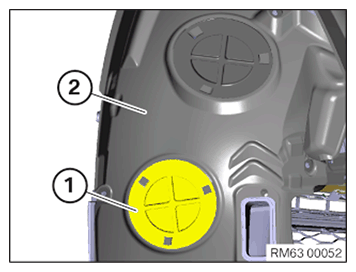

Release cover (1) by turning counterclockwise and remove from wheel arch trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

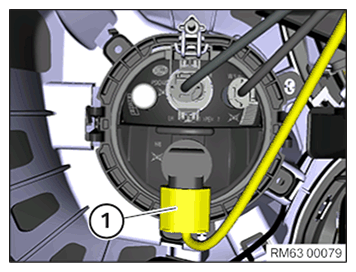

Unlock and disconnect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

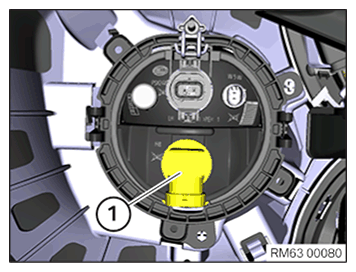

Release halogen bulb with socket (1) by turning counterclockwise and pull out of fog lamp.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Note: BULB , check BULB TYPE .

Join halogen bulb with socket (1) in fog light and engage by turning clockwise.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Join cover (1) in wheel arch trim panel (2), and turn clockwise up to stop.

NOTE: Ensure detent of cover (1) is correct in wheel arch panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.
