SI number

08 12 14 (155)

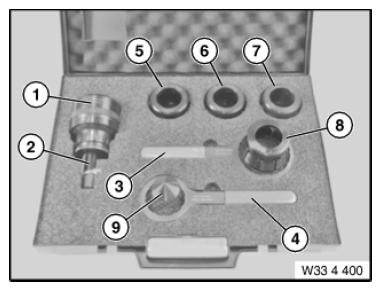

Fig 1: Identifying Device (334400)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0493816 Basic body

NOTE: No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

2 = 0493817 Spindle

NOTE: No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

3 = 0493818 Wrench

NOTE: (Ignition key) Discontinued, only available via complete tool

4 = 0493819 Wrench

NOTE: (Ignition key) Discontinued, only available via complete tool

5 = 0493820 Pliers

NOTE: (Clamping ring (45 to 51 mm)) No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

6 = 0493821 Pliers

NOTE: (Clamping ring (50 to 55 mm)) No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

7 = 0494617 Pliers

NOTE: (clamping ring (55...61 mm)) Model series: E67 No longer available separately, only via complete tool set 0493416 = 33 4 400.

8 = 0496538 Ring

NOTE: (Clamping ring) Model series: F01, F02 See SI: 01 18 08 (482). Available only as complete special tool set 33 4 400.

9 = 0496539 Synchronizing key

NOTE: Series: F01, F02 See SI: 01 18 08 (482) Remaining inventories will be sold off and then it will no longer be available separately, only available as part of complete tool set 0493416 = 33 4 400.
