00 11 239 Oil change in automatic transmission (A4S 310R / 270R)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330i, 2005 BMW 330Ci, 2004 BMW 330i, and 2004 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Transmission at operating temperature.
The vehicle must be on level ground.
Apply parking brake.
Automatic transmission fluid,

Unfasten drain plug.

Installation:

Replace sealing ring.Figure 24 13 TRANSMISSION EXTENSION, BEARINGS, SEALS
Tightening torque, refer to TECHNICAL DATA or 24 11 TRANSMISSION CASE, OIL SUMP 24 11 6AZ

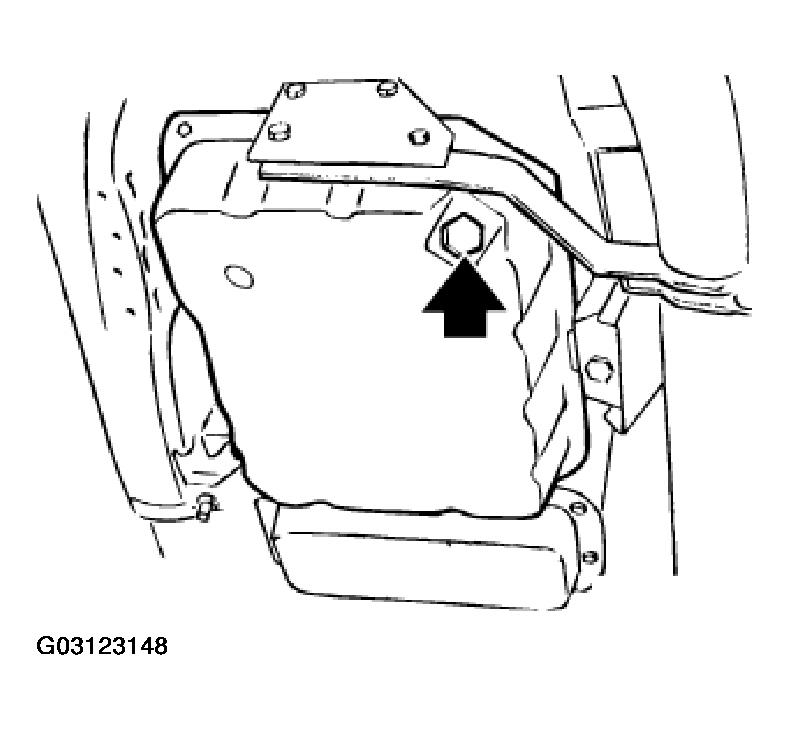

Fig 1: Identifying Drain Plug

G03123148

Courtesy of BMW OF NORTH AMERICA, INC.

Version with dipstick:

Tilt handle and remove dipstick.

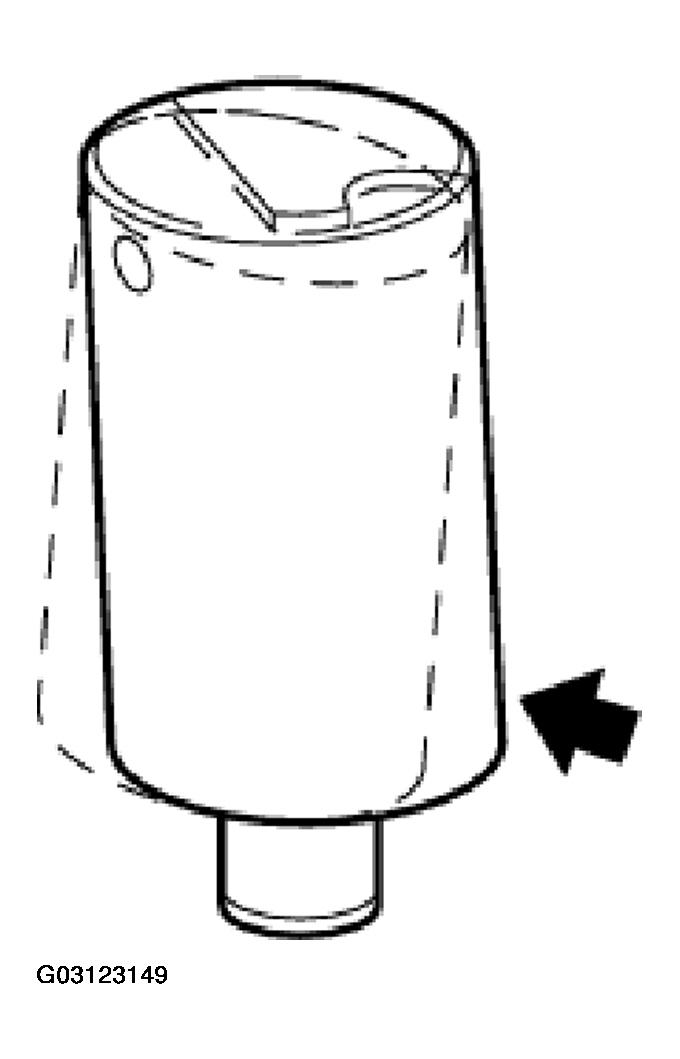

Fig 2: Tilting Handle

G03123149

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 24 0 080 top up with automatic transmission fluid.

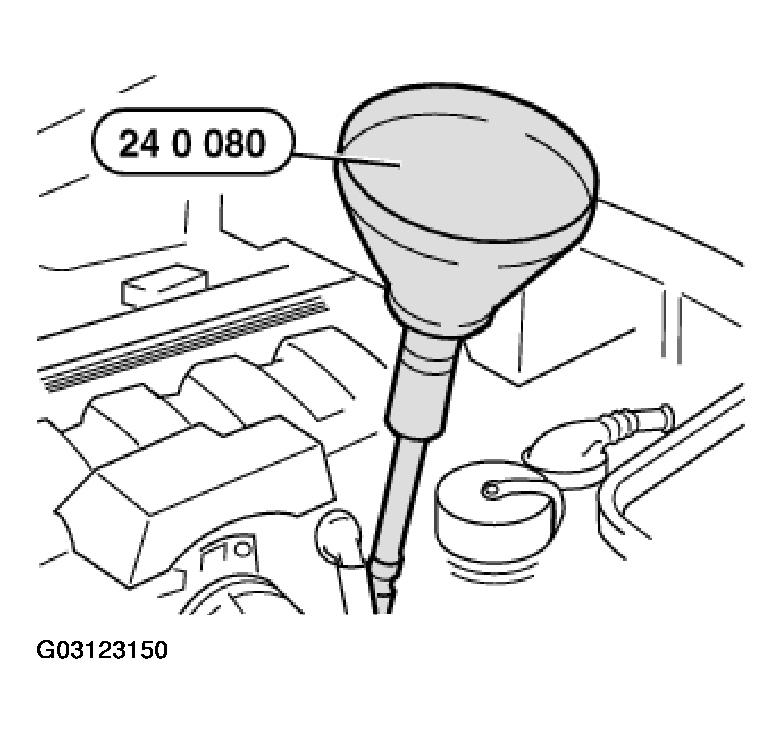

Fig 3: Top Up Automatic Transmission Fluid Using Special Tool 24 0 080

G03123150

Courtesy of BMW OF NORTH AMERICA, INC.

Query transmission oil temperature with MoDiC or BMW Service Tester (refer to Troubleshooting Manual).

NOTE: Never wipe off oil dipstick with a cloth which loses lint.

Start engine.

Apply brake and run through all driving stages several times in neutral.

Move selector lever into position "P".

Determine oil level (H) with dipstick.

Using following table, correct oil level by draining or topping up.

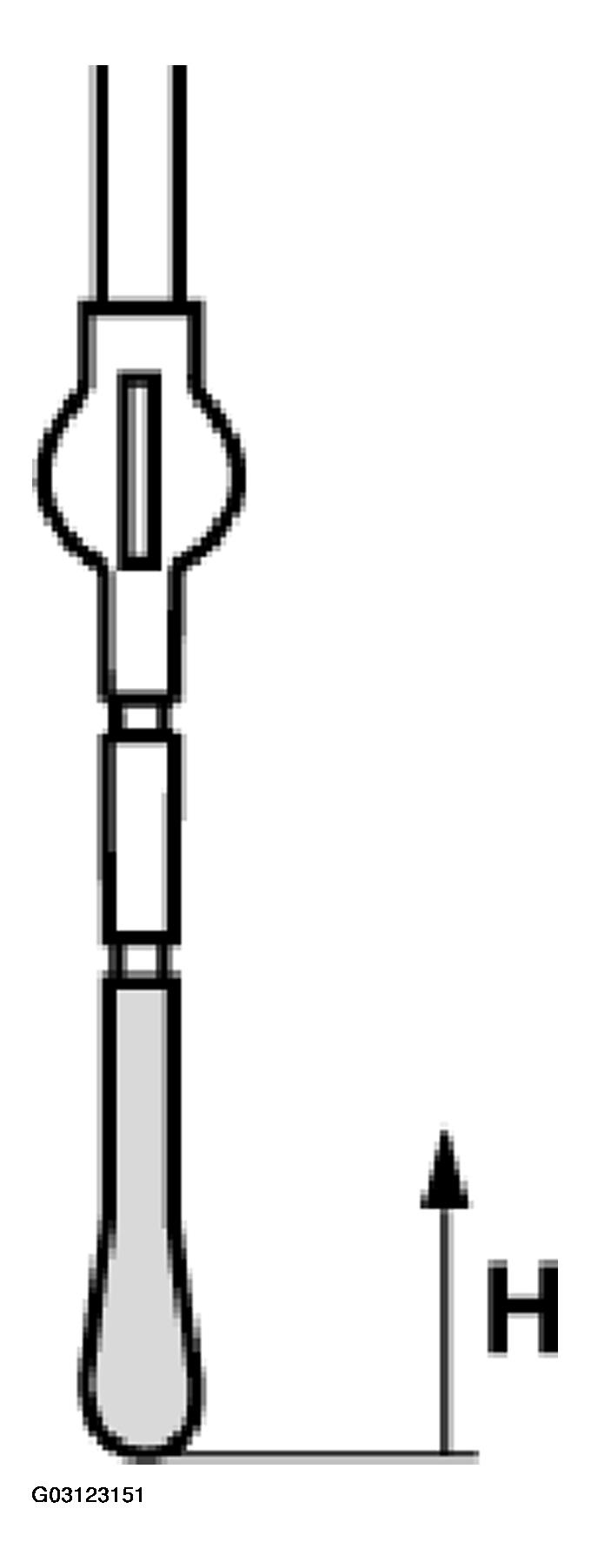

Fig 4: Identifying Oil Level In Dipstick

G03123151

Courtesy of BMW OF NORTH AMERICA, INC.

OIL TEMPERATURE and LEVEL SPECIFICATIONS

Oil temperature + ° C	Oil level (H) mm Min... Max
20	3... 15
25	5... 17
30	8... 20
35	11... 22
40	13... 25
45	14... 26
50	16... 27
55	17... 28
60	19... 29
65	21... 32
70	22... 34
75	24... 36
80	26... 38
85	29... 41
90	31... 43

Version without dipstick:

Unfasten filler screw.

Installation:

Replace sealing ring. Figure
Tightening torque, refer to TECHNICAL DATA .

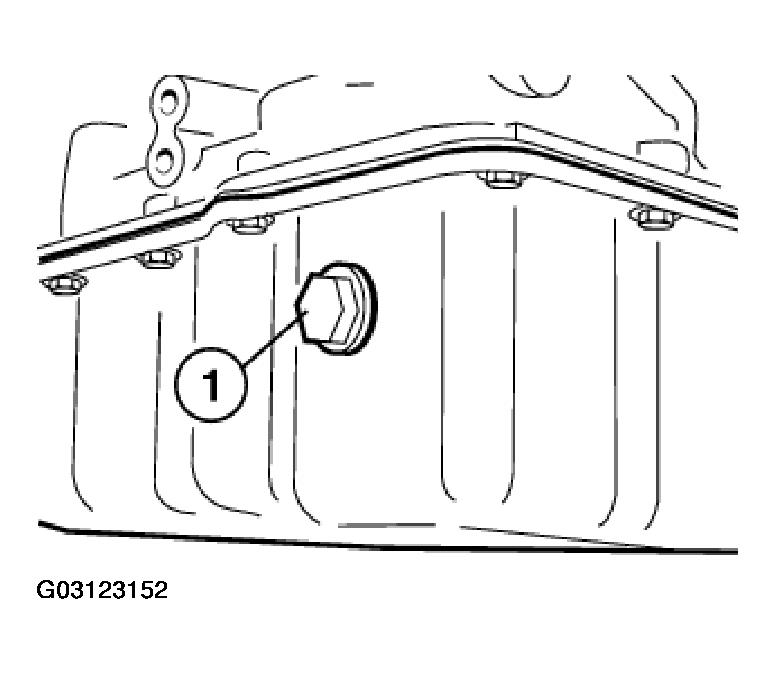

Fig 5: Identifying Filler Screw

G03123152

Courtesy of BMW OF NORTH AMERICA, INC.

To top up, attach filler neck (2) to filler aperture.

Top up automatic transmission fluid until it overflows.

Screw in filler screw.

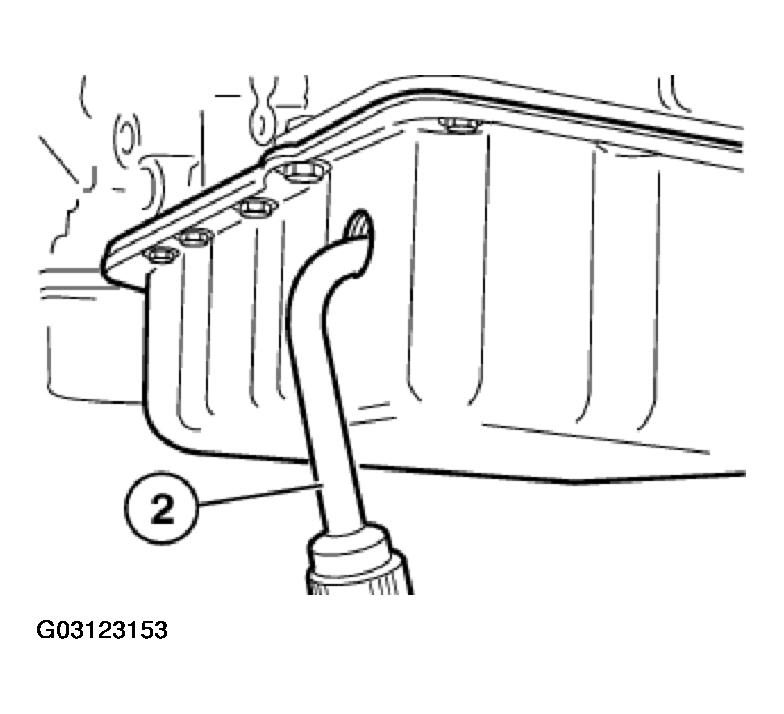

Fig 6: Connecting Filler Neck To Filler Aperture

G03123153

Courtesy of BMW OF NORTH AMERICA, INC.

Query transmission oil temperature with MoDiC or BMW Service Tester (refer to Troubleshooting Manual).

Start engine.

Apply brake and run through all driving stages several times in neutral.

Transmission temperature between 30... 55°C.

Move selector lever into position "P".

Unscrew filler plug (1).

Correct oil level by draining or topping up until it overflows.

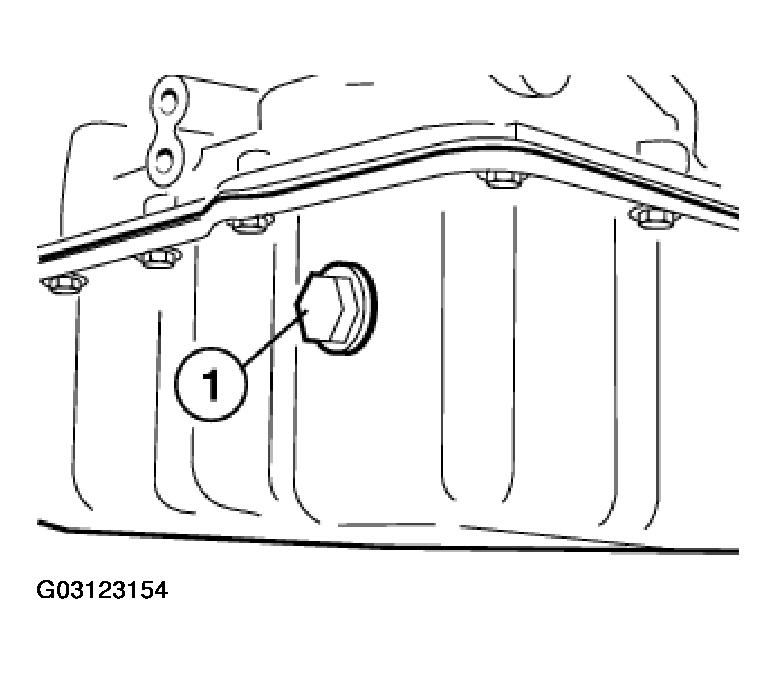

Fig 7: Unscrewing Filler Plug

G03123154

Courtesy of BMW OF NORTH AMERICA, INC.
