63 99 401 Replacing bulb for left or right license plate light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The procedure following the instructions below is possibly made easier by holding the rear lid partly open.

Lever out lens cover (1) in direction (A) and then in direction (B) and remove.

NOTE: Direction (A) is determined by the position of retaining clip (2). Always lever lens cover in direction of this retaining clip because this facilitates its removal.

Remove bulb (3).

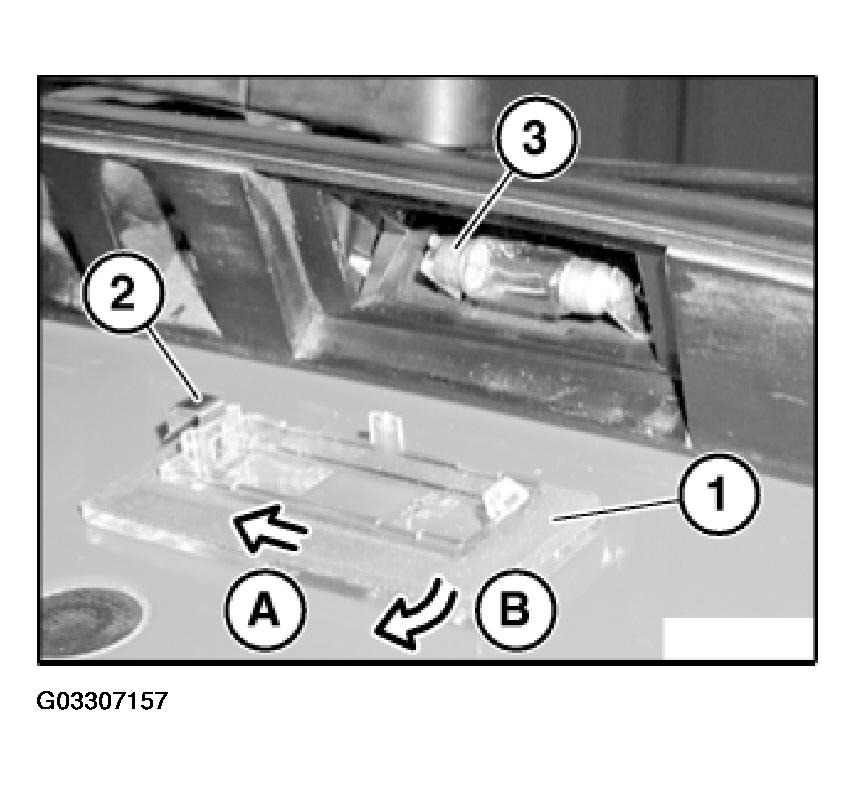

Fig 1: Identifying License Plate Light Lens

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb.

NOTE: Technical data for new bulb. Refer to LIGHTS - TECHNICAL DATA - COOPER (1.6L) R50/W10 .
