51 71 041 Removing and installing/replacing rear left or right wheel arch liner

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Remove screw (1) securing wheel arch liner to sill trim.

Remove threaded blind rivet (2).

Unscrew nut (3).

Tightening torque, refer to 51 71 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

Remove liner from wheel arch.

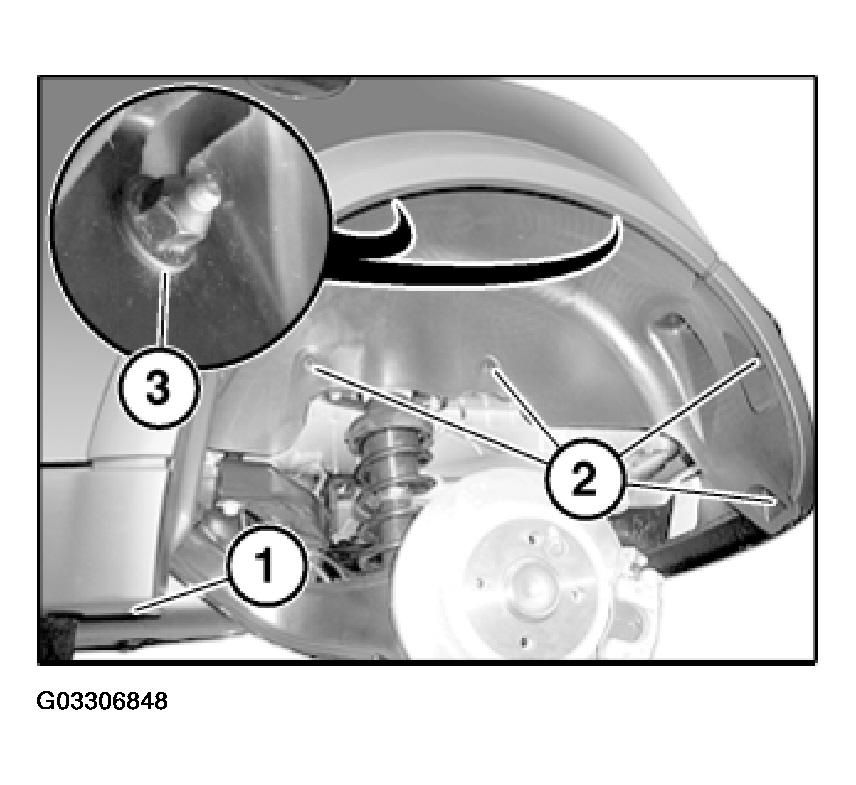

Fig 1: Removing Screw Securing Wheel Arch Liner To Sill Trim

Courtesy of BMW OF NORTH AMERICA, INC.
