51 31 015 Repairing damage to windscreens caused by pitting (stone chips) (clear and tinted laminated safety glass)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Field Of Vision (No Repairs Acceptable):

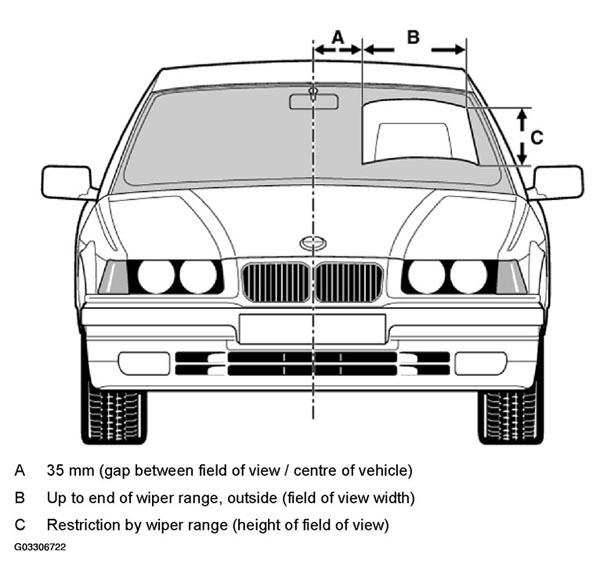

Fig 1: Measuring Area For Windscreens Repairing

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Repairs must only be carried out outside of the field of vision (refer to sketch).

If the stone chip damage is outside the field of vision, replace windshield.
