36 11 521 Removing and installing/replacing RPA control unit (cars up to 03/02)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove right rear light. Refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT .

Release screws (1) and remove bracket (2) with control unit.

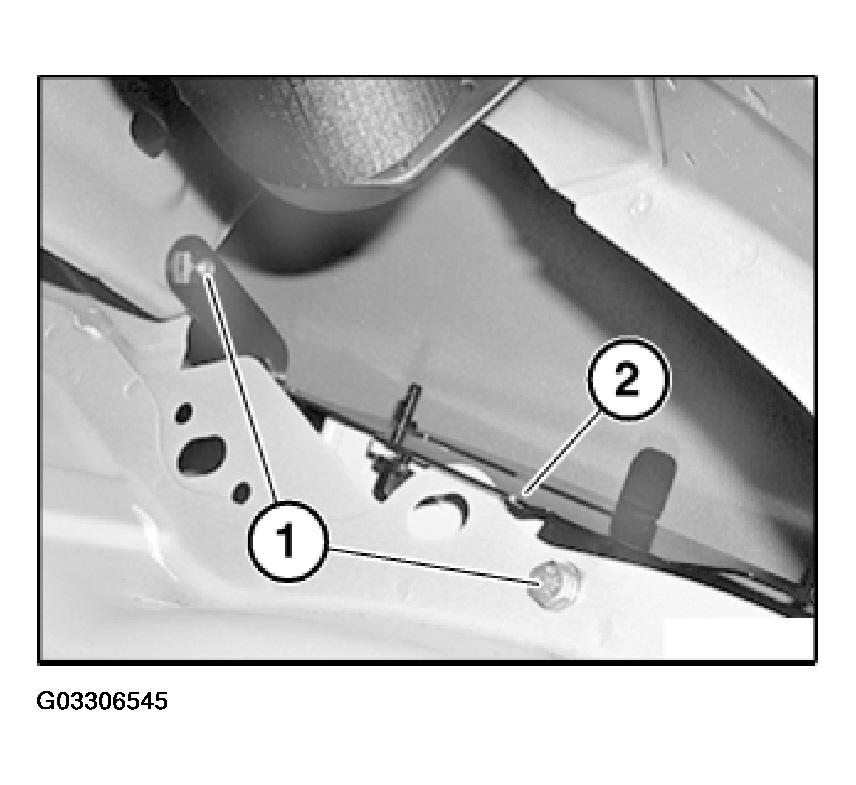

Fig 1: View Of Bracket With RPA Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connector

Release nuts (2) and remove control unit from bracket.

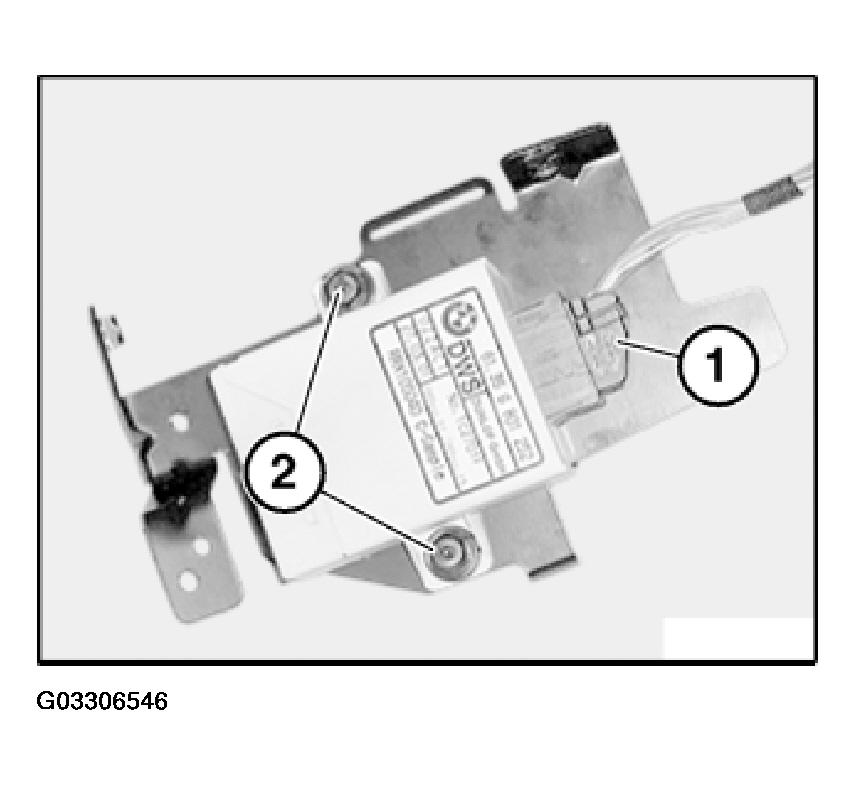

Fig 2: Locating Plug Connector For RPA Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
