00......Raising vehicle with trolley jack (vehicle equipped with jacking point)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Vehicles without jacking points (located in the middle of the front axle carrier) must not be raised or moved with the trolley jack! Use only BMW-distributed/approved trolley jacks which have rubber plate contact points. Trolley jacks must be regularly serviced and always checked for functional reliability before they are used! To prevent the vehicle from slipping off the trolley jack, check the rubber plate for damage prior to each use.

Raising vehicle at front:

If necessary, remove front spoiler/spoiler lip.

E67: Fit jacking point.

Slide trolley jack under vehicle at front middle until the rubber contact plate is situated below the jacking point.

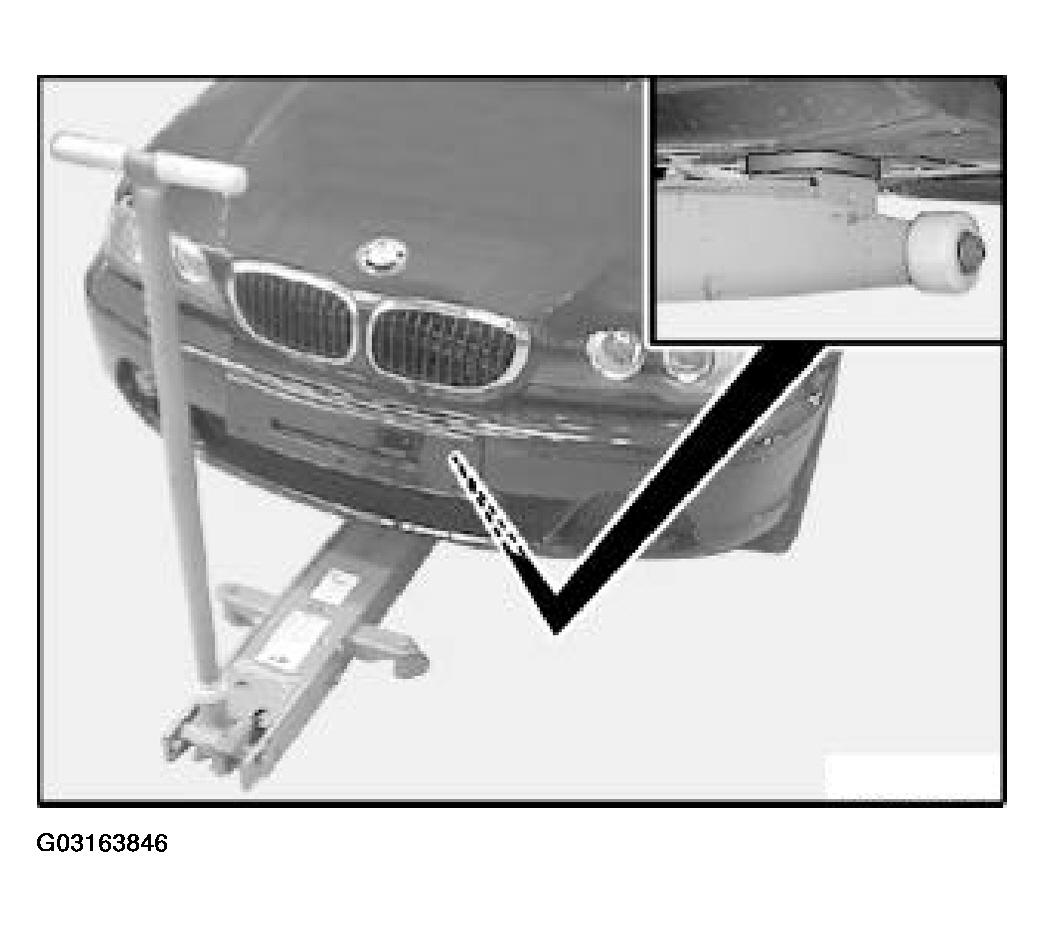

Fig 1: Identifying Jacking Point
G03163846Courtesy of BMW OF NORTH AMERICA, INC.

Raise vehicle with trolley jack.

Raising vehicle at rear:

IMPORTANT: Risk of damage: Raising the vehicle at the rear differential is not permitted!
