00 11 500 Checking/topping up fluid level in automatic transmission (A5S 390R, A4S 200R/310R)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use only the approved transmission fluid in this automatic transmission

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Details of approved fluid type, refer also to adhesive label on transmission fluid sump.

Move selector lever to park position "P".

The vehicle must be horizontal and secured against rolling off.

NOTE: The illustration shows the transmission for vehicles with gasoline/petrol engines. The filler plug for vehicles with diesel engines and on the A4S 200R (GM4) transmission is located at the front.

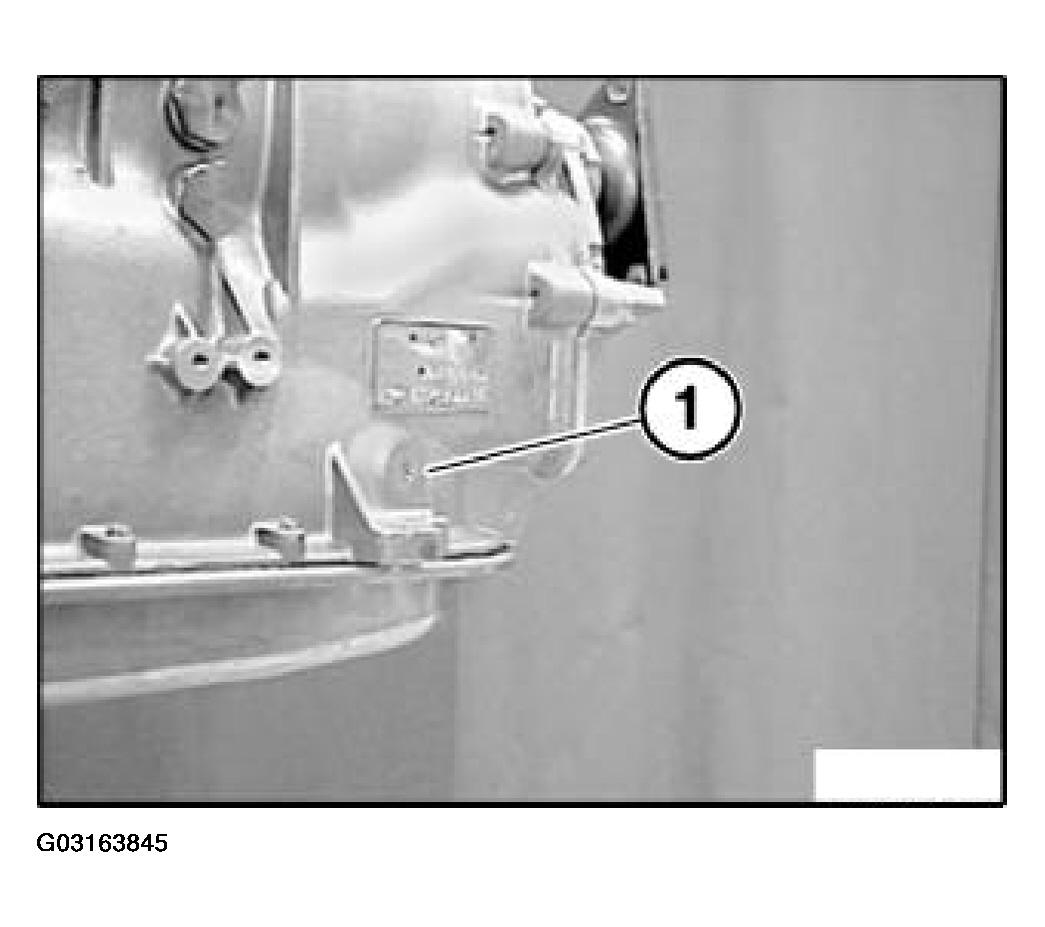

Fig 1: Identifying Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Connect BMW Diagnosis and Information System (DIS) or BMW MoDIC to vehicle.

Release filler plug (1).

TOP up automatic transmission fluid until overflowing.

Screw in filler plug (1) by hand.

Start engine and shift through all gears at idle speed.

Open filler plug (1) again.

Increase temperature of transmission fluid to 30...50°C.

Interrogate temperature of transmission fluid with MoDiC or DIS.

Top up automatic transmission fluid until overflowing.

Screw in filler plug (1).

Installation:

Check sealing ring on filler plug (1) for damage and if necessary replace sealing ring and filler plug.
Tightening torque, 18 N.m.
