00 00 250 BMW engine oil service incl. supplementary service (M54 / M56)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Work step 00 00 250 comprises the engine oil and supplementary services. Only the engine oil service will be described in these repair instructions.

Engine Oil Service:

Release and tighten down main flow oil filter cap with a socket only.

When the main flow oil filter cap is opened, engine oil flows from the oil filter housing back into the oil sump.

Release main flow oil filter cap and remove towards top.

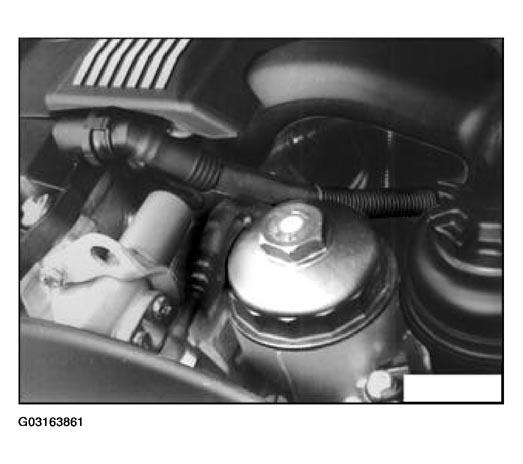

Fig 1: Identifying Main Flow Oil Filter Cap With Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 8mm 22 N.m, 10mm 33 N.m and 12mm 33 N.m.

Installation:

Replace and oil O-ring.

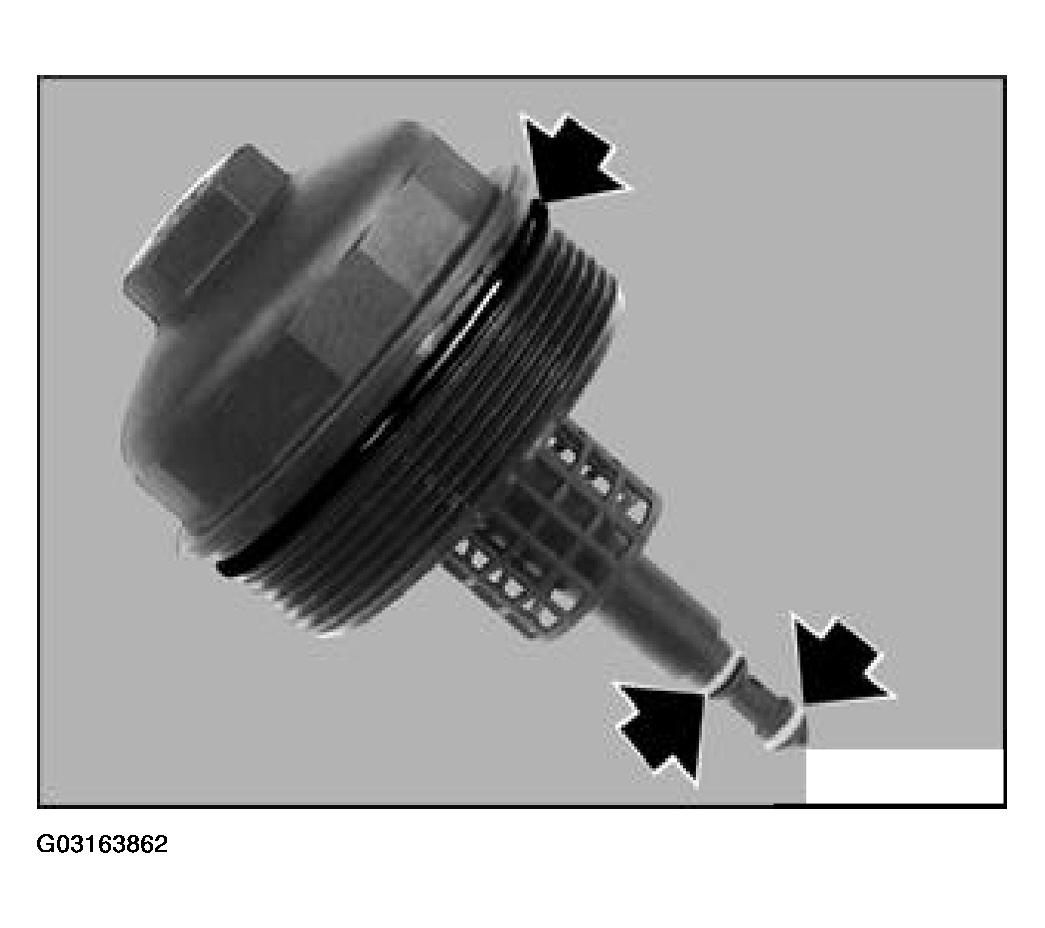

Fig 2: Installing Main Flow Oil Filter Oil O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Drain or draw off engine oil.

When engine oil is drained, open cap in engine underguard.

Open oil drain plug and drain off engine oil.

Installation:

Replace sealing ring.

Tightening torque, M12x1.5 25 N.m, M18x1.5 35 N.m and M22x1.5 60 N.m.

Fig 3: Installing Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Complete vehicle and set in horizontal position.

Top up engine oil.

Start engine and run at idle until oil indicator lamp goes out.

Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.
