63 12 895 Replacing electronics box/control unit for left adaptive headlight

Xenon headlight: high voltage hazard!

Disconnect all components from voltage supply before removal.

Work on the entire xenon lighting system (ignition device, control unit and xenon bulb) may only be carried out by qualified personnel.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release screws (1) and remove protective cap (2) from headlight (3).

Electronics box/control unit is locked in protective cap (2).

Tightening torque 63 12 4AZ .

NOTE: Graphic similar

Installation note:

Make sure electronics box/control unit (1) is correctly seated in protective cap (2).

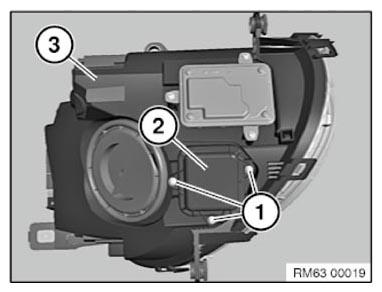

Fig 1: Identifying Headlight, Protective Cap And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing (2) and gasket (3) must not be damaged.

Fig 2: Identifying Pin Housing And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
