334400 Device

NOTE: For removing inner wheel bearing races on rear axle

SI number: 08 12 14 (155)

Consisting of:

1 = 0493816 Basic body

NOTE: No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

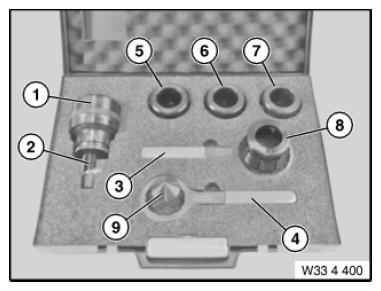

Fig 1: Identifying Device (334400)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0493817 Spindle

NOTE: No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

3 = 0493818 Wrench

NOTE: (Ignition key) Discontinued, only available via complete tool

4 = 0493819 (Wrench

NOTE: (Ignition key) Discontinued, only available via complete tool

5 = 0493820 Pliers

NOTE: Clamping ring (45 to 51 mm)) No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

6 = 0493821 Pliers

NOTE: (Clamping ring (50 to 55 mm)) No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.

7 = 0494617 Pliers

NOTE: (clamping ring (55...61 mm)) Model series: E67 No longer available separately, only via complete tool set 0493416 = 33 4 400.

8 = 0496538 Ring

9 = 0496539 Synchronizing key
