2156246 Hydraulic cylinders

AM

NOTE: Hydraulic cylinder (hydraulic actuator) in connection with lever, (81 64 2 156 247), for removal and installation of wheel bearings, propeller shafts and drive flanges.

SI number: 08 06 09 (544)

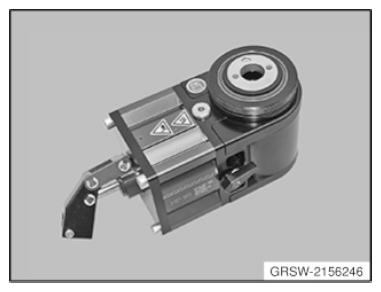

Fig 1: Identifying Hydraulic Cylinders (2156246)
G11011470Courtesy of BMW OF NORTH AMERICA, INC.
