314150 Device

Minimum set: Mechanical tools AM

NOTE: For removing and installing rubber mount in lower wishbone.

Storage Location: A21

B21

SI number: 01 01 07 (333)

Consisting of:

1 = 0495834 Bush

NOTE: Discontinued, can only be ordered using complete tool

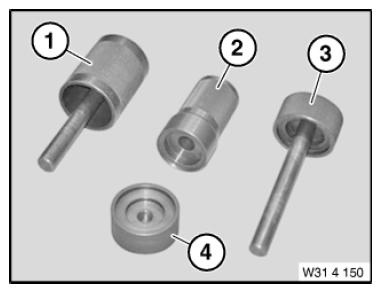

Fig 1: Identifying Device (314150)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0495835 Synchronizing key

NOTE: Discontinued, can only be ordered using complete tool

3 = 0495836 Synchronizing key

NOTE: Discontinued, can only be ordered using complete tool

4 = 0495902 Synchronizing key

NOTE: Discontinued, can only be ordered using complete tool
