65 13 070 Removing and installing/replacing speakers (midrange speaker, front door left and right)

Necessary preliminary tasks:

• Remove front door trim panel. See REPLACING FRONT LEFT OR RIGHT DOOR TRIM PANEL (UP TO 11/2012) or REPLACING FRONT LEFT OR RIGHT DOOR TRIM PANEL (FROM 11/2012) .

Release screws.

Remove speaker (1) from door trim panel (2).

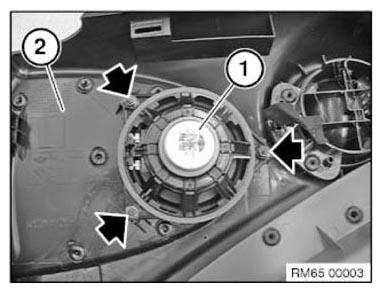

Fig 1: Identifying Door Trim Panel And Speaker With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
