009120 Torque angle measuring dial

Minimum set: Mechanical tools AM

NOTE: For torsion angle adjustment of cylinder head bolts (all engines) And reinforcement plate front axle support E46

Storage Location: A4

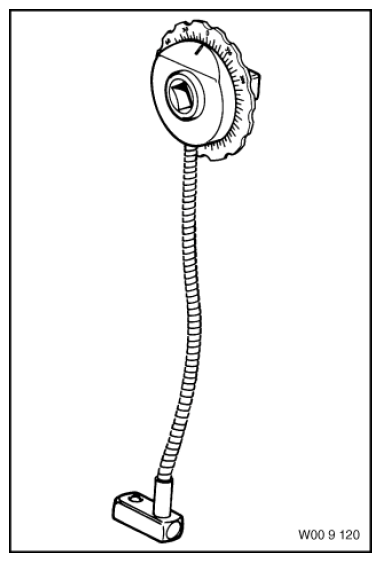

Fig 1: Identifying Torque Angle Measuring Dial (009120)

Courtesy of BMW OF NORTH AMERICA, INC.
