27... Removing connecting shaft from PTO housing

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Installation note:

Install retaining ring (1).

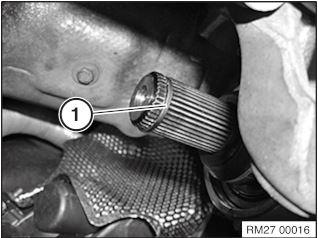

Fig 1: Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 31 2 151 into the groove in the circlip.

Secure connecting shaft against falling.

Lever connecting shaft (1) out of the PTO housing using lever (2).

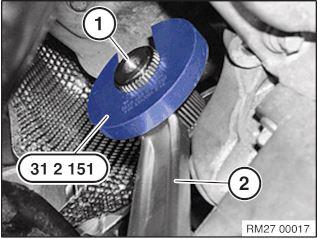

Fig 2: Special Tool, Connecting Shaft, And Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Drive connecting shaft home with a rubber mallet.

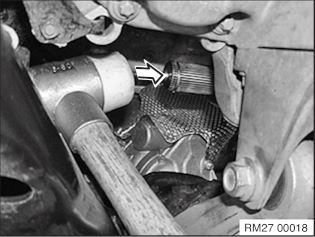

Fig 3: Installing Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
