27 10 110 Replacing radial shaft seal for connecting shaft, right

WARNING: This page is about a different variant/trim than selected.

Special tools required:

After completion of work, CHECK OIL LEVEL and top up if necessary.

IMPORTANT:

Use only the approved OIL .

Failure to comply with this requirement will result in serious damage to the transfer box!

Necessary preliminary tasks:

Manual transmission only: Drain and catch transmission oil.
Remove RIGHT OUTPUT SHAFT

Release screws (1).

Remove PTO mount.

Tightening torque 27 10 2AZ .

Fig 1: Removing PTO Mount Screws

G11010336

Courtesy of BMW OF NORTH AMERICA, INC.

Remove circlip (1).

Installation note:

Install retaining ring (1).

Fig 2: Retaining Ring Location

G11010337

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the connecting shaft (1) out of the PTO housing.

Fig 3: Pulling Connecting Shaft Out Of PTO Housing

G11010338

Courtesy of BMW OF NORTH AMERICA, INC.

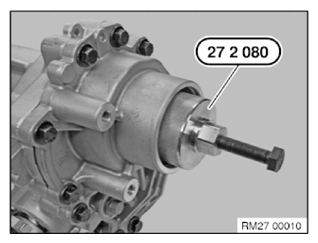

Screw in special tool 27 2 080 until it is firmly connected with radial shaft seal.

Screw in bolt until the radial shaft seal is released from the housing.

Fig 4: Screwing Special Tool (27 2 080)

G11774371

Courtesy of BMW OF NORTH AMERICA, INC.

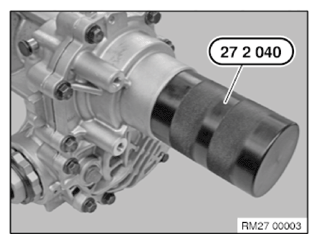

Wet the sealing lip of the new radial shaft seal with oil.

Drive shaft seal firmly home with special tool 27 2 040 .

Fig 5: Removing Shaft Seal Using Special Tool (27 2 040)

G11774372

Courtesy of BMW OF NORTH AMERICA, INC.
