27 10 100 Replacing radial shaft seal for connecting shaft, leftN18

WARNING: This page is about a different variant/trim than selected.

Special tools required:

After completion of work, CHECK OIL LEVEL and top up if necessary.

IMPORTANT:

Use only the approved OIL .

Failure to comply with this requirement will result in serious damage to the transfer box!

Necessary preliminary tasks:

Screw in special tool 27 2 060 until it is firmly connected with radial shaft seal.

Screw in bolt until the radial shaft seal is released from the housing.

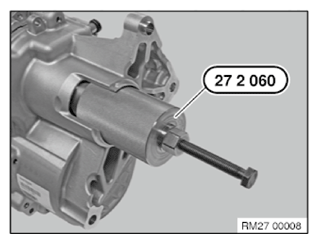

Fig 1: Screwing Special Tool (27 2 060)

Courtesy of BMW OF NORTH AMERICA, INC.

Wet the sealing lip of the new radial shaft seal with oil.

Drive shaft seal firmly home with special tool 27 2 020 .

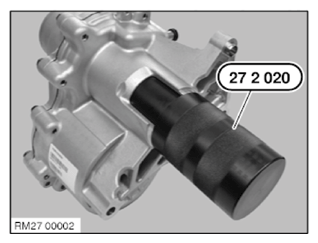

Fig 2: Driving Shaft Seal Using Special Tool (27 2 020)

Courtesy of BMW OF NORTH AMERICA, INC.
