27 10 020 Installing replacement transfer box (PTO)
WARNING: This page is about a different variant/trim than selected.
Recycling:
Catch and dispose of escaping transmission oil. Observe country-specific waste disposal regulations
IMPORTANT:
The spare part transfer box is delivered without
oil filling.
After installation an oil top up must be carried out and the TRANSMISSION OIL LEVEL checked.
After installation an oil top up must be carried out and the TRANSMISSION OIL LEVEL checked.
Necessary preliminary tasks:
- Remove TRANSFER BOX
Modify the following parts:
- Convert the connecting shaft
- Convert covers and protective caps
- Convert drive shaft transportation retainer
After completing work TOP UP OIL .

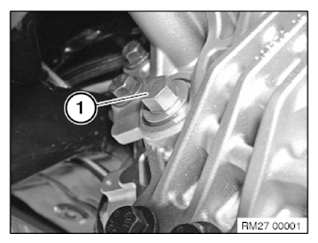

Release filler plug (1).
Check oil level.
Tightening torque 27 10 3AZ
Pour in transmission oil up to lower edge of opening for filler plug (1).
IMPORTANT:
Use only the approved OIL .
Failure to comply with this requirement will result in serious damage to the transfer box!
