18 12 031 Replacing rear silencer (N16)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Only perform this repair work after engine has cooled down.
Danger of injury!
Removal of the exhaust system must be carried out with the assistance of a second person.

Support exhaust system (1) with a suitable jack (2).

Protect the front and rear silencers from falling down.

Fig 1: Supporting Exhaust System With Suitable Jack

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the separation point line is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new rear silencer.

Carry over separation point to faulty rear silencer and mark.

Secure rear silencer against falling off.

Cut through exhaust pipes at marked point with a suitable tool.

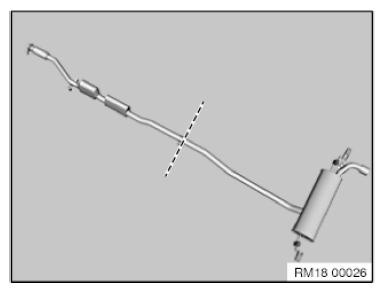

Fig 2: Identifying Cutting Mark On Exhaust Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 31 9AZ .

Unscrew nuts (4).

Tightening torque 18 31 8AZ .

Remove reinforcement plate (2) and reinforcement strut (3).

Fig 3: Identifying Reinforcement Plate, Reinforcement Strut, Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with four-wheel drive only:

Release screws (1).

Tightening torque 33 31 4AZ .

Remove stiffening strut(2).

Fig 4: Identifying Stiffening Strut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 31 10AZ .

Remove reinforcement plate (2).

Fig 5: Identifying Reinforcement Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on rear silencer on left and right.

Tightening torque 18 31 11AZ .

Lower and remove rear silencer.

Fig 6: Identifying Rear Silencer Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Adapt new rear silencer and connect using clamp.

Center clamp and tighten down.

Tightening torque 18 31 6AZ .

Fig 7: Identifying Center Muffler With Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check rubber mount for damage.

If necessary, replace damaged rubber mounts.

Check exhaust system for leak tightness.
