21 21 500 Removing and installing or replacing clutch (SAT 235)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove transmission. See TRANSMISSION (GS6-53BG) (N18) or TRANSMISSION (GS6X-53BG), WITH N18 ENGINE AND AWD .

Lock flywheel with special tool 11 9 590 .

Fig 1: Locking Flywheel With Special Tool (11 9 590)

Courtesy of BMW OF NORTH AMERICA, INC.

Observe the following procedure when installing the removed clutch and clutch disc.

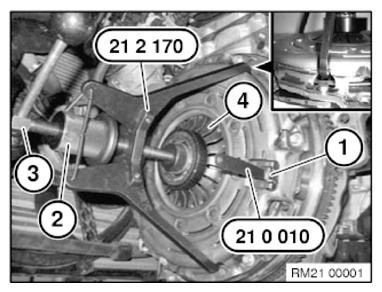

Fit special tool 21 2 170 and tighten down at knurled screw (2).

Screw in spindle (3) (approx.6-8 mm) until diaphragm spring (4) is tensioned on stop.

Insert special tool 21 0 010 in recess (1) and disable readjustment of the clutch.

The special tool must remain in the position shown until the clutch is refitted.

IMPORTANT: Only insert special tool 21 2 170 in the area of the riveting between pressure plate and spring on the cover.
Release screws and remove clutch from flywheel.

Fig 2: Inserting Special Tool (21 0 010) Into Recess

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean flywheel and check for wear and damage.

Replace damaged flywheel.

The diaphragm spring tabs of pressure plate can differ in height up to 2 mm when removed.

Do not straighten under any circumstances!

IMPORTANT: Always replace clutch discs fouled e.g. by oil, cleaning agent.
Before reinstallation, used clutch discs are to be cleaned and the grease on hub splines is to be renewed.
The transmission input shaft is to be cleaned but not greased.
New clutch discs are already greased.

Graphic similar.

Check clutch disc for wear.

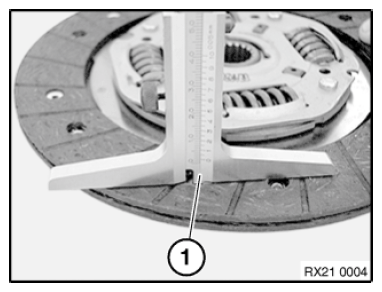

Measure lining protrusion on transmission side.

Measure from rivet head (1).

The clutch disc must be replaced if the lining protrusion at the rivet head (1) is less than 0.5 mm.

Fig 3: Measuring Lining Protrusion On Transmission Side From Rivet Head

Courtesy of BMW OF NORTH AMERICA, INC.

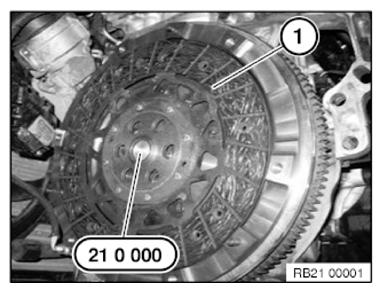

Center clutch disc (1) with special tool 21 0 000 .

IMPORTANT: Install clutch disc in correct position.
Handle clutch disc with care. Do not touch surfaces of friction linings.

Fig 4: Installing Clutch Disc In Correct Position Using Special Tool (21 0 000)

Courtesy of BMW OF NORTH AMERICA, INC.

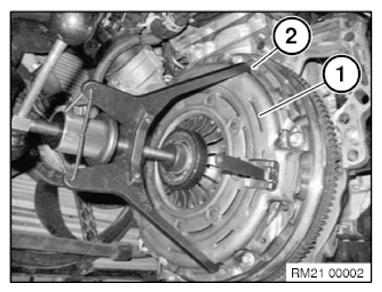

Fit clutch (1) to flywheel.

Tighten clutch screws crosswise.

Tightening torque 21 21 5AZ .

NOTE: Clutch (1) must be secured by way of dowel pins (2).

Fig 5: Fitting Clutch To Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

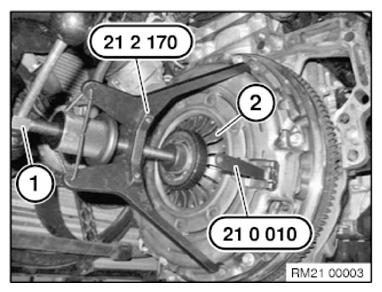

Release spindle (1) until load is fully removed from diaphragm spring (2)

Remove special tools 21 2 170 and 21 0 000 .

Fig 6: Releasing Load From Diaphragm Spring

Courtesy of BMW OF NORTH AMERICA, INC.

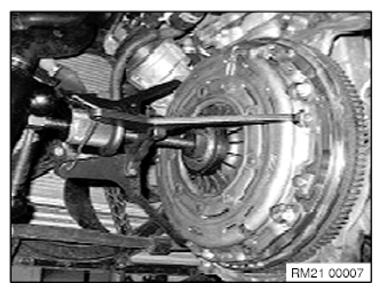

Withdraw special tool from clutch disc with aid of accompanying screw (1).

Fig 7: Identifying Accompanying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new clutch

Vehicles up to model year 02/2013:

When fitting a new clutch, it is imperative that the over-center helper spring of the pedal mechanism is replaced at the same time.

IMPORTANT: Only insert special tool 21 2 170 in the area of the riveting between pressure plate and spring on the cover.

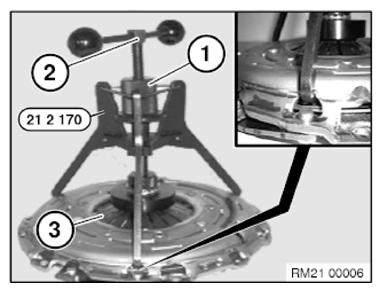

Fit special tool 21 2 170 to pressure plate and tighten at the knurled screw (1).

Screw in spindle (2) approx.10-12 mm) until diaphragm spring (3) is tensioned on stop.

The diaphragm spring must not be pressed too far.

Fig 8: Positioning Special Tool (21 2 170) On Pressure Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Center clutch disc (1) with special tool 21 0 000 .

IMPORTANT: Install clutch disc in correct position.
Handle clutch disc with care. Do not touch surfaces of friction linings.

Fig 9: Installing Clutch Disc In Correct Position Using Special Tool (21 0 000)

Courtesy of BMW OF NORTH AMERICA, INC.

Fit the pre-tensioned clutch.

Tighten clutch screws crosswise.

Tightening torque 21 21 5AZ .

Fig 10: Tightening Clutch Screws

Courtesy of BMW OF NORTH AMERICA, INC.

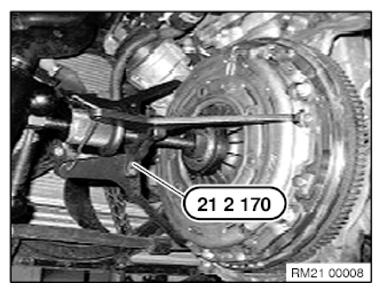

Remove special tool 21 2 170 .

Fig 11: Removing Special Tool (21 2 170)

Courtesy of BMW OF NORTH AMERICA, INC.

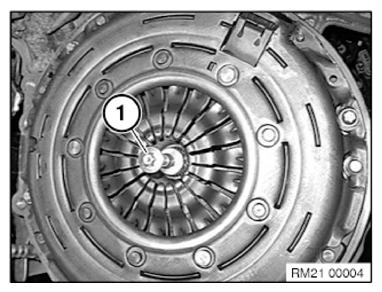

Withdraw special tool from clutch disc with aid of accompanying screw (1).

Fig 12: Identifying Accompanying Screw

Courtesy of BMW OF NORTH AMERICA, INC.
