72 11 096 Removing and installing/replacing rear left or right lower strap

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Lever out the inner cover (2) from the backrest frame (1) with a screwdriver.

Push the cover to the side to expose the basic carrier.

Fig 1: Identifying Luggage Compartment Floor Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the cover (1) above the seat belt buckle (2) and seat mechanism (3).

Fig 2: Identifying Seat Mechanism, Seat Belt Buckle And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Route the cover (1) correctly over the seat belt buckle and seat mechanism.

Fig 3: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

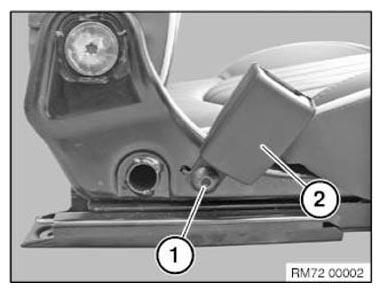

Release screw (1).

Tightening torque 72 11 08AZ .

Remove lower strap fitting (2).

Installation note:

Lower strap is encoded against incorrect assembly (2).

Fig 4: Identifying Lower Strap Fitting And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
