72 12 060 Removing and installing or replacing left or right head airbag

Special tools required:

• 2 230 142

Switch off the ignition!

Installation note:

• Microencapsulated screws must be replaced and may not  be reused
• Screw connection must be completed within 20 minutes (start of curing)
• Microencapsulated screws must not  be retightened
• Clean thread of nut beforehand in event of repeated use

Necessary preliminary tasks:

• Lower ROOFLINER
• Disconnect BATTERY EARTH LEAD

To detach the clamps, use special tool 2 230 142 .

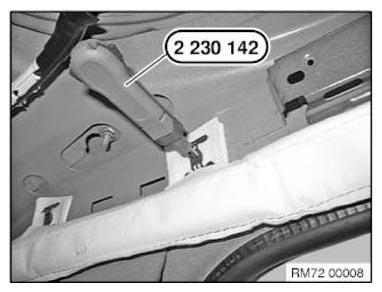

Fig 1: Detaching Clamps Using Special Tool (2 230 142)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and remove clamps (1).

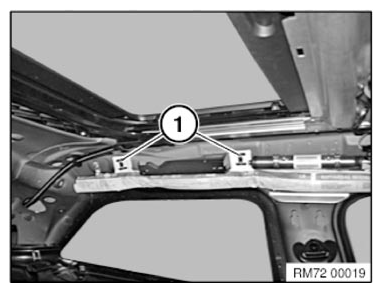

Fig 2: Identifying Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and remove clamps (1).

Release screw (2) for end fitting.

Tightening torque 72 12 08AZ .

Installation note:

Replace microencapsulated screws.

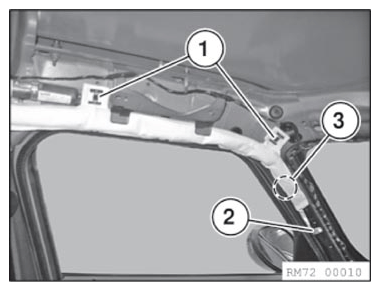

Fig 3: Identifying Clamps And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten PLUG CONNECTION  (2) and disconnect.

Release bolts (3) and remove holder with gas generator (1).

Tightening torque 72 12 08AZ .

Installation note:

Replace microencapsulated screws.

Gas generator is coded against incorrect assembly.

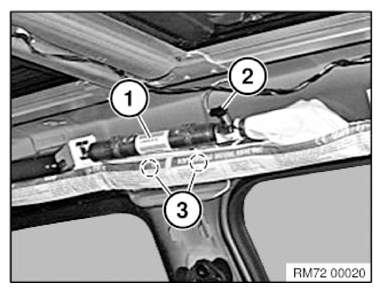

Fig 4: Identifying Head Airbag Gas Generator, Plug Connection And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure holders (1) are fitted correctly.

Retaining lugs must be correctly located in openings of the folding pack.

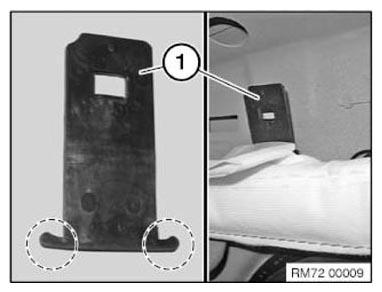

Fig 5: Identifying Holders

Courtesy of BMW OF NORTH AMERICA, INC.
