67 11 555 Removing and installing/replacing actuator drive for fuel filler flap

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER HOUSING

Unlock retaining lugs (2) with a suitable tool.

Remove actuator drive (1) from cover pot (3).

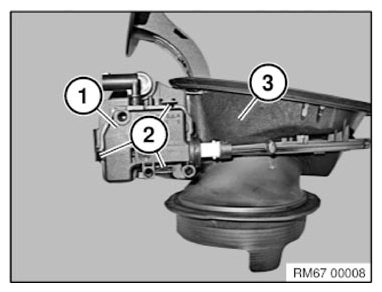

Fig 1: Identifying Actuator Drive, Retaining Lugs And Cover Pot

Courtesy of BMW OF NORTH AMERICA, INC.

Release the actuator drive (2) by simultaneously turning and pressing the locking pin (1).

Installation note:

Make sure the setting for the actuator drive (2) for the fuel filler flap is correct. It must be possible to lock or unlock the fuel filler flap completely.

Fig 2: Identifying Actuator Drive And Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.
