64 53 551 Removing and installing or replacing capacitor for heating and air conditioning system

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 030

WARNING: Follow all applicable SAFETY INFORMATION .

IMPORTANT:

Risk of damage!

Restart engine only when A/C system has been correctly filled.

If air conditioning system is opened for more than 24 hours: REPLACE DESICCANT INSERT FOR A/C SYSTEM

Necessary preliminary tasks:

EVACUATE the air conditioning system.
Remove FRONT BUMPER PANEL .

Remove air ducts (1) on the left and right.

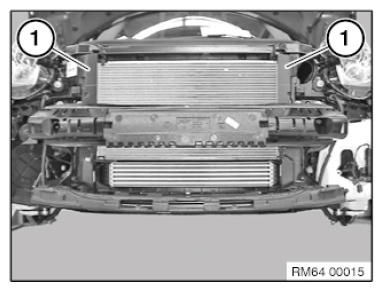

Fig 1: Identifying Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 64 53 01AZ .

Remove refrigerant lines (2) from condenser.

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

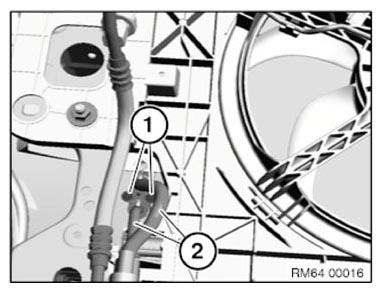

Fig 2: Identifying Condenser Refrigerant Line And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Lift out capacitor (2).

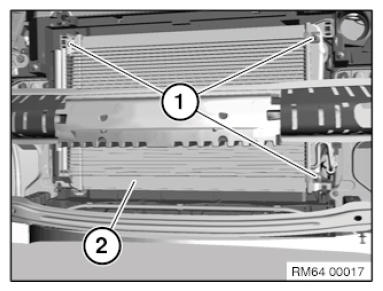

Fig 3: Identifying Capacitor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

EVACUATE AND FILL the air conditioning system.
