64 22 161 Removing and installing or replacing middle fresh-air grille
WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove INSTRUMENT PANEL COVER
NOTE:
Removal of the center left fresh air grille is described.

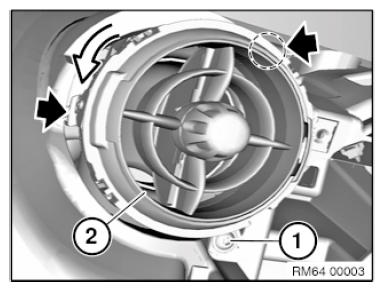

Release screw (1).
Disengage fresh air grille (2) in direction of arrow and take off.
Installation note:
The retaining lugs must be correctly locked at the marked positions.
