64 11 X02 Removing and installing/replacing central kinematics

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Unlock and disconnect plug connections at marked points.

Disengage microswitch (2).

Release screws (1).

Remove central kinematics (3).

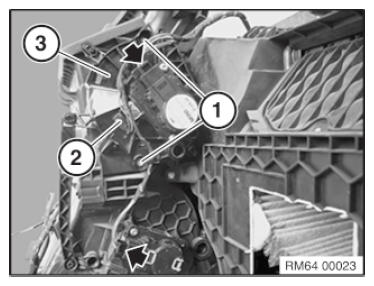

Fig 1: Identifying Central Kinematics, Microswitch And Screws
G10002925Courtesy of BMW OF NORTH AMERICA, INC.
