64 11 225 Replacing controller for heating and air conditioning system blower

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and feed out cover (2) towards bottom.

Fig 1: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

There are two controller versions for the heating and air conditioning system.

Version A.

Disconnect plug connection (1).

Turn controller (2) slightly to the left and remove.

Fig 2: Removing Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mark (1) on controller must line up with mark (2) on heating and air-conditioning unit.

Fig 3: Identifying Marking On Controller And Heater

Courtesy of BMW OF NORTH AMERICA, INC.

Version B.

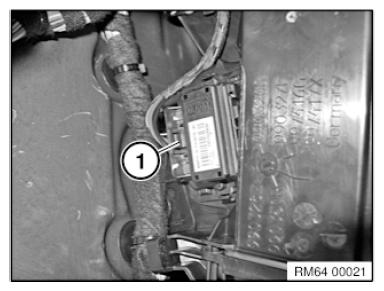

Unfasten plug connection (1) and disconnect.

Fig 4: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

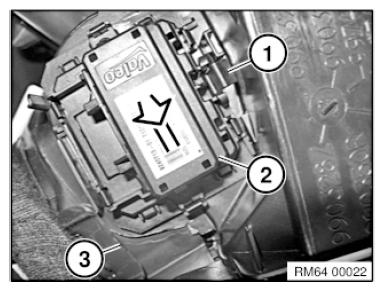

Release lock (1).

Slide controller (2) upwards slightly and pull out of heating and air-conditioning unit (3).

Fig 5: Removing Heating And Air Conditioning Unit Controller

Courtesy of BMW OF NORTH AMERICA, INC.
