2344569 Measurement aid Minimum set: Mechanical tools AM: Notes

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For compensator testing in the case of Conti high-pressure pumps. Engine: N14; N18 Associated contour-graphic silhouette foil can be ordered under: 83 30 2 356 848.

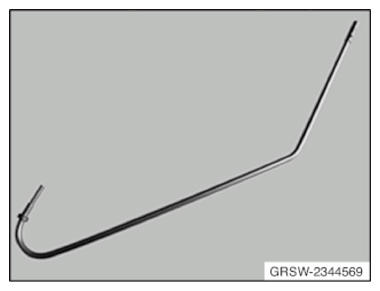

Fig 1: Identifying Measurement Aid Minimum Set - Mechanical Tools AM (2344569)

Courtesy of BMW OF NORTH AMERICA, INC.
