63 21 176 Removing and installing/renewing chrome trim on left or right rear light

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Necessary preliminary tasks:

Remove left or right REAR LIGHT

Remove the cover of the water channel (1) on the latch mechanism (2) of the rear light (3) with 00 9 325 .

Remove the water channel cover (1) from the rear light (3) in direction of arrow.

Installation note:

Make sure the water channel cover (1) of the rear light (3) is correctly fitted.

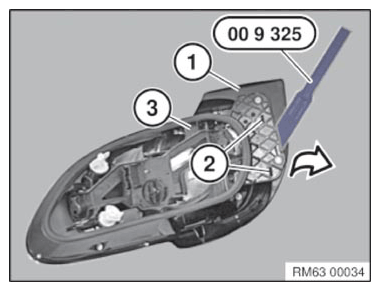

Fig 1: Removing Rear Light Water Channel Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The guides (1) and latch mechanisms (2) on the water channel cover (3) must not be damaged or missing.

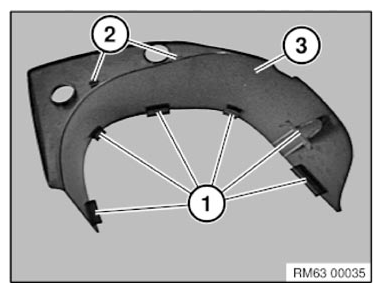

Fig 2: Identifying Water Channel Cover Guides And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the screws (arrow) and remove the chrome trim (1) from the rear light (2).

Installation note:

Make sure the chrome trim (1) is correctly seated on the rear light (2).

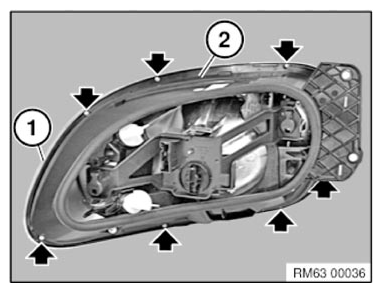

Fig 3: Locating Rear Light Chrome Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.
