51 47 490 Removing and installing/replacing front underbody protection

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove underbody protection (2).

Installation note:

Center underbody protection and tighten down screws.

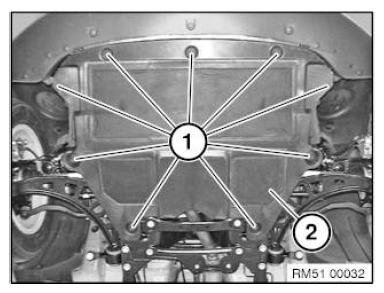

Fig 1: Identifying Underbody Protection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
