31..... Layout of spring strut shock absorber

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

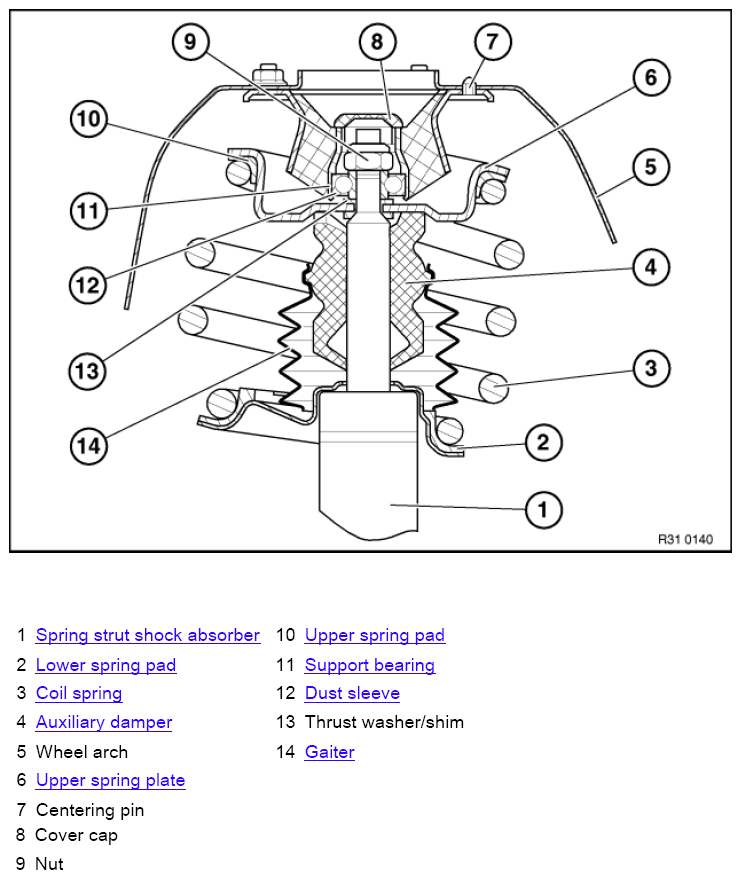

Fig 1: Spring Strut Shock Absorber Layout
G11023395Courtesy of BMW OF NORTH AMERICA, INC.
