31 11 008 Removing and installing/replacing rear reinforcement bar
WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INFORMATIONS
for raising the vehicle
Driving without the reinforcement bar is not permitted!
Driving without the reinforcement bar is not permitted!

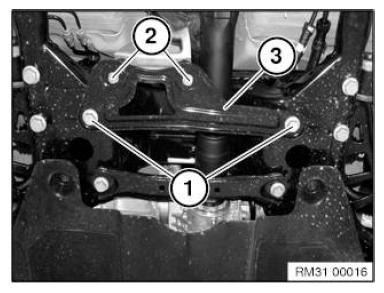

Release screws (1).
Tightening torque 31 11 6AZ
Unscrew nuts (2).
Tightening torque 18 31 8AZ
Remove reinforcement bar (3).
