34 41 120 Removing and installing/replacing both handbrake Bowden cables

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Completely remove CENTER CONSOLE .
Release heat shield over exhaust system and shift in position

After completing repair work, ADJUST PARKING BRAKE

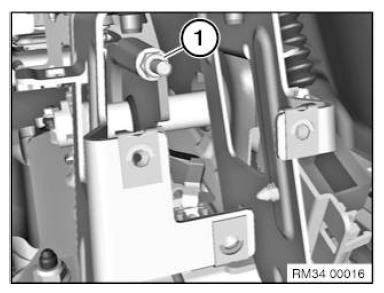

Release adjusting fixture (1) for parking brake Bowden cable.

Fig 1: Identifying Self-Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.

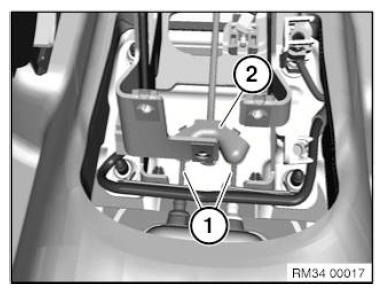

Detach both parking brake Bowden cables (1) from balance arm (2).

Fig 2: Identifying Parking Brake Bowden Cables And Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

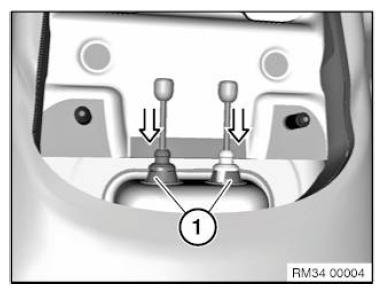

Compress circlip (1) with suitable pliers.

Push parking brake Bowden cable towards rear.

Installation note:

Ensure that circlips are locked correctly.

Fig 3: Compressing Circlip With Suitable Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Release cables from clips (1) on fuel tank.

Release screws (2) and remove holder from wishbone at top.

Fig 4: Identifying Rear Axle Support Bolts And Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining clip (1) in direction of arrow.

Disengage parking brake Bowden cable (2) from operating lever (3) at brake caliper.

Feed out parking brake Bowden cable (2) downwards.

Fig 5: Disengaging Parking Brake Bowden Cable From Actuating Lever At Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.
