34 41 000 Removing and installing handbrake lever

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Fully remove CENTER CONSOLE .

After completing repair work, ADJUST PARKING BRAKE

Release adjuster (1) of parking brake lever.

Fig 1: Identifying Self-Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.

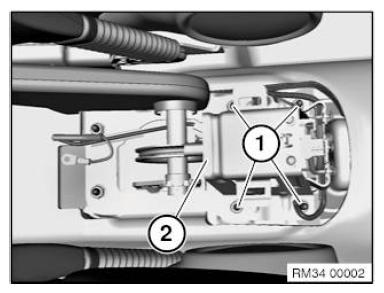

Release nuts (1) and remove holder (2).

If necessary, remove cable clip from holder (2).

Installation note:

Replace self-locking nuts.

Tightening torque 34 41 1AZ .

Fig 2: Identifying Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

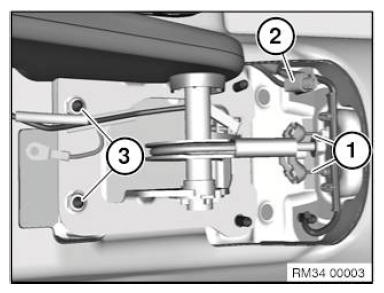

Detach both parking brake Bowden cables (1) from balance arm.

If necessary, remove cable clip (2).

Disconnect plug connection for handbrake light switch.

Release nuts and remove parking brake lever (1).

Installation note:

Replace self-locking nuts.

Tightening torque 34 41 1AZ .

Fig 3: Identifying Parking Brake Lever, Cable Clip And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
