34 31... Overview of brake master cylinder/brake booster

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

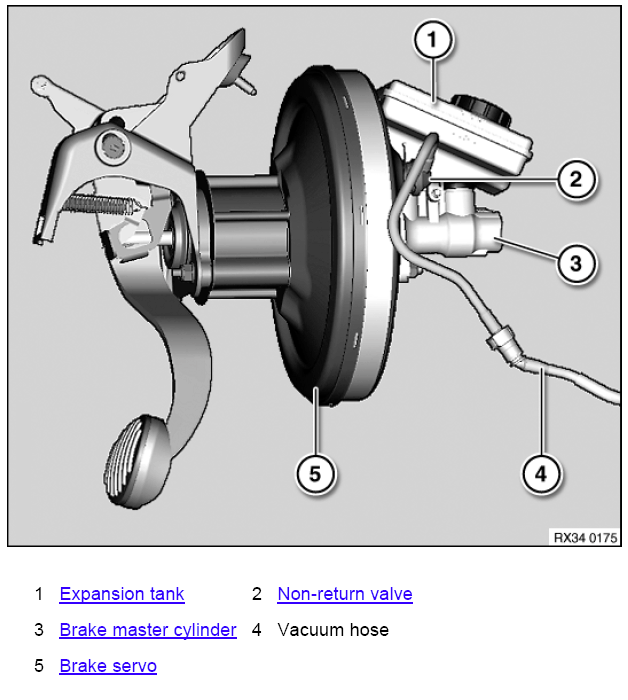

Fig 1: Overview Of Brake Master Cylinder/Brake Booster
G11023838Courtesy of BMW OF NORTH AMERICA, INC.
