34 00 x01 Guideline for applying brake pad paste on brake pads and brake anchor plate

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g).
Spread brake pad paste onto the marked surfaces using a brush!

(1) Brake pad paste 100 gr. BMW part no. 83 19 2 158 852
(2) Brake pad paste 3 gr. BMW part no. 83 19 2 158 851
(3) Brush for spreading brake pad paste over the marked areas.

Fig 1: Identifying Brake Pad Paste And Brush

Courtesy of BMW OF NORTH AMERICA, INC.

Brake IPS (CBI) 1-piston floating caliper brake (model ranges: 1-Series, 3-Series, 4- Series, X3)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 2: Identifying Brake Piston Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 3: Identifying T-Heads/Brake Caliper Housing Contact Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 4: Identifying Brake Caliper Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 5: Identifying Brake Pad Guide Surfaces On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 6: Identifying Guide Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coating of brake pad paste to T-head of inner brake pad in area (1) and (2).

Fig 7: Identifying Brake Pad Paste Application Area On T-Head Of Inner Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coating of brake pad paste to T-head of outer brake pad in area (1) and (2).

Fig 8: Identifying Brake Pad Paste Application Area On T-Head Of Outer Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Brake FN (Continental Teves) 1- piston floating caliper brake (model ranges: 5- Series, 6-Series, 7-Series, 8-Series, X1, X3, X5, Z4, RR)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 9: Identifying Brake Piston Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 10: Identifying Contact Surfaces Of T-Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 11: Identifying Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 12: Identifying Brake Pad Guide Surfaces On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Identifying Guide Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 14: Coating T-Head Of Inner Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 15: Coating T-Head Of Outer Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

Brake FN (Continental Teves) 2- piston floating caliper brake (model ranges: 5- Series, 6-Series, 7-Series, 8-Series, X5, RR)

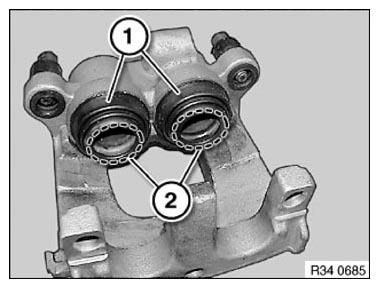

Clean contact surface (2) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 16: Identifying Brake Piston Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 17: Identifying Contact Surfaces Of T-Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) and brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 18: Identifying Brake Caliper Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 19: Identifying Brake Caliper Guide Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Identifying Guide Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 21: Coating T-Head Of Inner Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 22: Coating T-Head Of Outer Brake Pad With Brake Pad Paste

Courtesy of BMW OF NORTH AMERICA, INC.

Brake Collette (TRW) 1-piston brake caliper (model ranges: MINI, 1-Series, 5-Series, 6- Series, Z4)

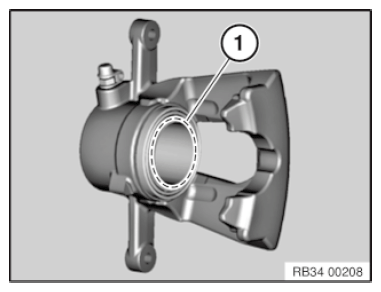

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 23: Identifying Brake Piston Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 24: Identifying Brake Caliper Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surface (1) for the brake pads on the brake caliper mounting bracket. Clean guide surface (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 25: Identifying Guide Surface For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coating of brake pad paste to both sides of T-head of brake pad in area (1).

Fig 26: Identifying Brake Pad Paste Application Area On Both Sides Of T-Head

Courtesy of BMW OF NORTH AMERICA, INC.

Brake P 4.40 (Brembo) 4-piston fixed caliper brake (model ranges: MINI, 1-Series, 3-Series, 4-Series, 5-Series, 6-Series, 7- Series, 8-Series, X5, RR)

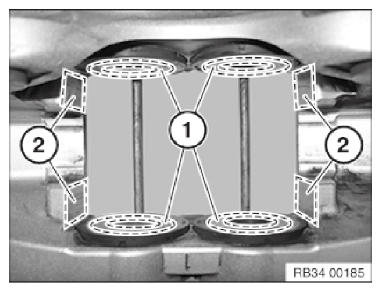

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (2) for the brake pads on the brake caliper mounting bracket. Clean guide surface (2) with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

Fig 27: Identifying Brake Piston Contact Surface And Brake Pads Guide Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

Fig 28: Identifying Brake Pad Paste Application Area On Both Sides Of Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Fig 29: Identifying Paste Application Area On Both Sides Of Brake Pad Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Brake P 4.40 (Brembo) 2-piston fixed caliper brake (model ranges: 1-Series, 3- Series)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

Fig 30: Identifying Contact Surface And Guide Surfaces -- Brembo 2-Piston Fixed Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

Fig 31: Identifying Brake Pad Paste Application Area On Both Sides Of Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Fig 32: Identifying Paste Application Area On Both Sides Of Brake Pad Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.
