34 32 980 Replacing rear left or right brake hose

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

READ AND COMPLY WITH GENERAL INFORMATION .
Partially detach underbody panelling

After completing tasks, BLEED BRAKE SYSTEM .

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Securing Brake Pedal With Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation note:

Tightening torque 34 32 1AZ .

Fig 2: Identifying Brake Line And Square Head

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose (1) from brake caliper.

Installation note:

Tightening torque 34 32 3AZ .

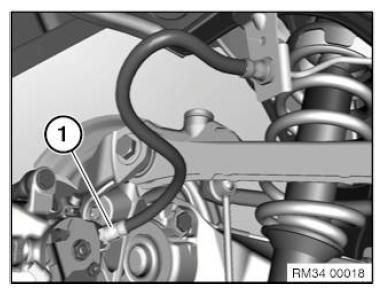

Fig 3: Identifying Brake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

NOTE: First tighten brake hose on brake caliper.
Insert brake hose in bracket and screw onto brake pipe.
