36 11 105 Removing and installing the RDC (tire pressure control) control unit

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Raise vehicle.

Removal:

Disconnect plug connection (1).

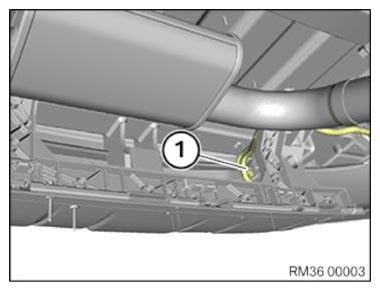

Fig 1: Identifying RDC Control Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press the retaining tabs apart and remove the RDC control unit in direction of arrow.

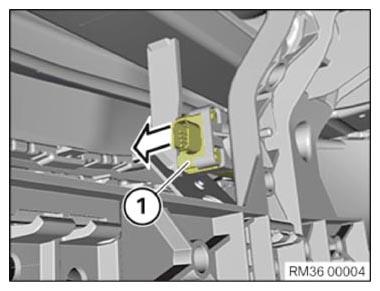

Fig 2: Removing RDC Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the RDC control unit in direction of arrow.

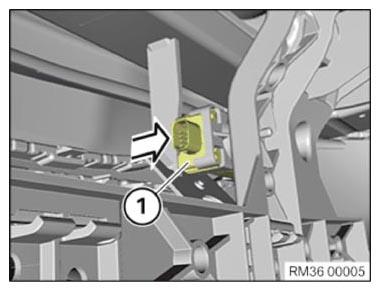

Fig 3: Installing RDC Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Connect plug connection (1).

Fig 4: Identifying RDC Control Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Carry out PROGRAMMING/ENCODING
