26 11 052 Replacing flexible disc for rear propeller shaft

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove EXHAUST SYSTEM .
Remove heat shields.

Release screws (1).

Tightening torque 26 11 4AZ .

NOTE: To protect the universal joint, tie back propeller shaft in area of center mount.

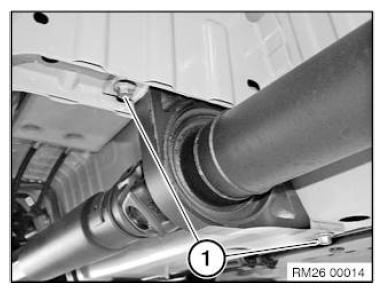

Fig 1: Identifying Propeller Shaft And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 26 11 2AZ .

Replace screws.

Installation note:

Replace ZNS bolts and self-locking nuts.

Fig 2: Locating ZNS Bolts And Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove flexible disc (1) from propeller shaft.

Tightening torque 26 11 3AZ .

Installation note:

Check centering (2).

Replace damaged CENTERING MOUNT .

Grease centering mount (refer to SPECIFIED GREASE ).

During installation the arrows on the circumference of the flexible disc must point to the flange arms.

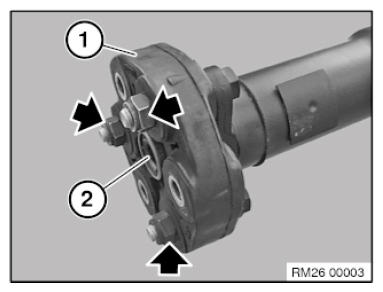

Fig 3: Locating Flexible Disc Screws And Centering

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Replace ZNS bolts and self-locking nuts.
