32 11... Instructions for removing and installing ear clips

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: The work steps are show on assorted components.

Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

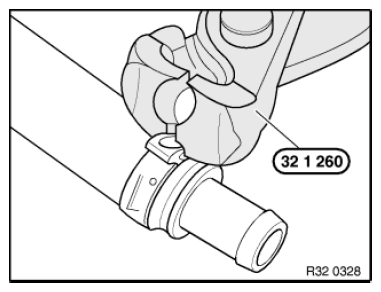

Fig 1: Positioning Special Tool (32 1 260)
G11023554Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

Fig 2: Identifying Ear Clip
G09837917Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260.

Fig 3: Pressing Ear Together With Special Tool
G09849257Courtesy of BMW OF NORTH AMERICA, INC.

Side cutter of special tool 32 1 260 can be used in areas which are difficult to access.

Fig 4: Identifying Special Tool (32 1 260)
G09837919Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Gap (A) max. 1 mm!
Fig 5: Identifying Ear Clip Gap
G09849296Courtesy of BMW OF NORTH AMERICA, INC.
