51 43 259 Removing and installing/replacing trim panel for rear roof pillar (D-pillar), left or right

Detach edge protection (3) in area of trim panel (1).

Detach trim panel (1) from clip (2) towards inside.

Remove trim panel (1) upwards.

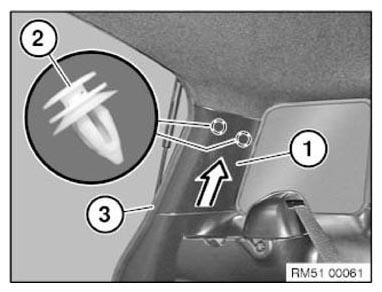

Fig 1: Detaching Trim Panel From Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure edge protection (3) is correctly seated.

Installation note:

Replace clips (1).

Guides (2) on trim panel (3) must not be damaged.

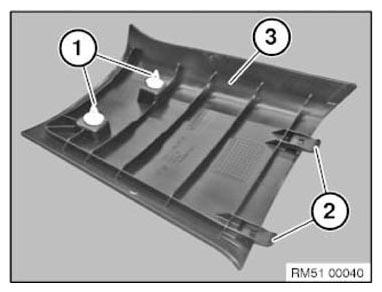

Fig 2: Identifying Guides And Clips On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
