52 26 414 Replacing backrest cover for rear seat, center

Special tools required:

52 0 050

Necessary preliminary work:

Remove HEAD RESTRAINT

WARNING: Seat and backrest frame of front seats have very sharp edges. Danger of injury and damage!

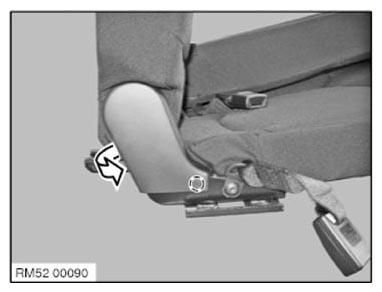

Unclip rear swivel cover (1).

Fig 1: Removing Rear Swivel Bearing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

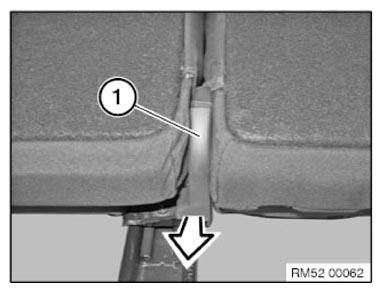

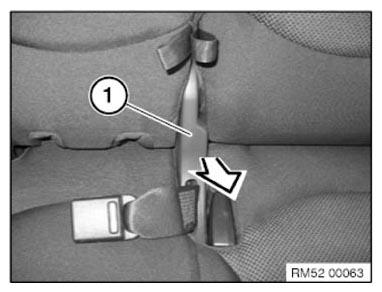

Remove front swivel cover (1).

Installation note:

Make sure the front and rear swivel covers are correctly seated and securely latched.

Fig 2: Removing Front Swivel Bearing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

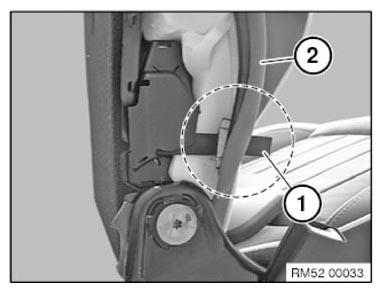

Unclip the inner fitting cover in marked area and remove.

Remove inner fitting cover in direction of arrow.

Fig 3: Removing Inner Fitting Cover

Courtesy of BMW OF NORTH AMERICA, INC.

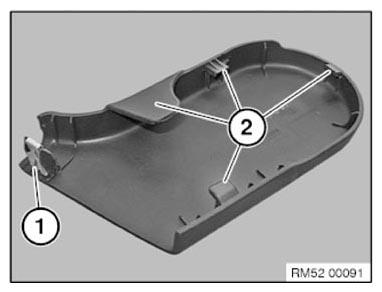

Installation note:

Retainer (1) must not be damaged.

Replace faulty clamp, if applicable.

Preassemble clamp (1) on fitting cover.

Retaining lugs (2) must not be damaged.

If necessary, replace faulty fitting cover.

Fig 4: Identifying Clamp And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

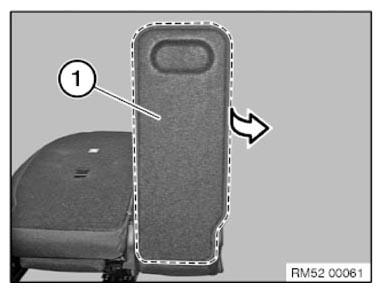

Lever welt in marked area (1) out of backrest frame.

Fig 5: Removing Rear Center Seat Backrest Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Fold the backrest cover upwards to expose the working area.

Press in retaining lug and remove guide sleeve upwards.

Remove backrest cover with upholstery from backrest frame.

Fig 6: Locating Guide Sleeve Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty guide sleeves, if applicable.

Retaining lugs must point outwards.

Guide sleeve without button
Guide sleeve with button

Fig 7: Identifying Guide Sleeves (With/Without Button)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed in loop (1) through backrest cover (1).

Fig 8: Identifying Rear Seat Backrest Cover And Loop

Courtesy of BMW OF NORTH AMERICA, INC.

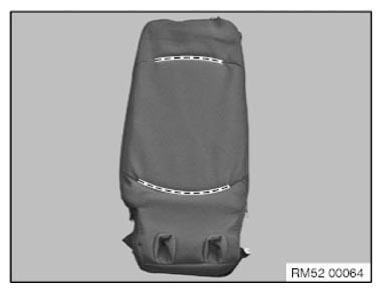

Release all clamps in marked area.

Remove seat cover from upholstery.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

Fig 9: Locating Center Rear Seat Backrest Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Upholstery
Clamp
Trim wire in upholstery
OKE strip in backrest cover
Backrest cover

Fig 10: Inserting Clamp Using Special Tool (52 0 050)

Courtesy of BMW OF NORTH AMERICA, INC.
