52 26 412 Replace backrest cover for right rear seat (5-seater)

Special tools required:

52 0 050

Necessary preliminary work:

Remove HEAD RESTRAINT

WARNING: Seat and backrest frame of front seats have very sharp edges. Danger of injury and damage!

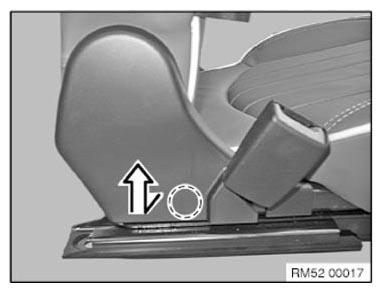

Unclip outer fitting cover (1).

Fig 1: Removing Rear Seat Outer Fitting Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged.

Metal clamp (2) must not be damaged.

Pre-mount metal clamp (2) on fitting cover.

If necessary, replace faulty fitting cover or metal clamp.

Fig 2: Identifying Rear Seat Cover Retaining Lugs And Metal Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the counterpart of the outer fitting cover (1).

Fig 3: Identifying Outer Fitting Cover Counterpart

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the inner fitting cover in marked area and remove.

Remove inner fitting cover in direction of arrow.

Fig 4: Removing Rear Seat Inner Fitting Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

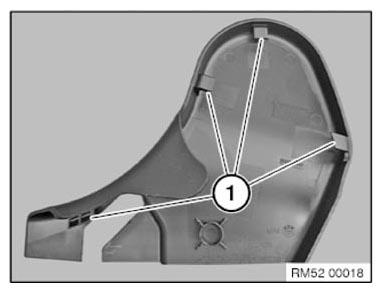

Retaining lugs (1) must not be damaged.

If necessary, replace faulty fitting cover.

Fig 5: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt from backrest frame in marked area.

Fig 6: Identifying Welt Area

Courtesy of BMW OF NORTH AMERICA, INC.

Fold the backrest cover upwards to expose the working area.

Press in retaining lug and remove guide sleeve upwards.

Remove backrest cover with upholstery from backrest frame.

Fig 7: Locating Guide Sleeve Retaining Lug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs must point outwards.

Guide sleeve without button
Guide sleeve with button

Fig 8: Identifying Guide Sleeves (With/Without Button)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed in loop (1) through backrest cover (1).

Fig 9: Identifying Rear Seat Backrest Cover And Loop

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps in marked area.

Remove seat cover from upholstery.

IMPORTANT: Remove all remnants of clamps from seat cover and upholstery.

Fig 10: Identifying Seat Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Upholstery
Clamp
Trim wire in upholstery
OKE strip in backrest cover
Backrest cover

Fig 11: Inserting Clamp Using Special Tool (52 0 050)
