52 26 155 Installing and removing/replacing the rear seat cover (5-seater)

Special tools required:

Necessary preliminary work:

Unclip outer fitting cover (1).

Fig 1: Removing Rear Seat Outer Fitting Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged.

Metal clamp (2) must not be damaged.

Pre-mount metal clamp (2) on fitting cover.

If necessary, replace faulty fitting cover or metal clamp.

Fig 2: Identifying Rear Seat Cover Retaining Lugs And Metal Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the counterpart of the outer fitting cover (1).

Fig 3: Identifying Outer Fitting Cover Counterpart

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the inner fitting cover in marked area and remove.

Remove inner fitting cover in direction of arrow.

Fig 4: Removing Rear Seat Inner Fitting Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged.

If necessary, replace faulty fitting cover.

Fig 5: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the welt of the cover latch (2) in the marked area from the seat frame.

Detach the tensioning strap (1) from the seat frame.

Disengage seat cover in marked area from seat frame.

Fig 6: Identifying Cover Latch Welt And Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

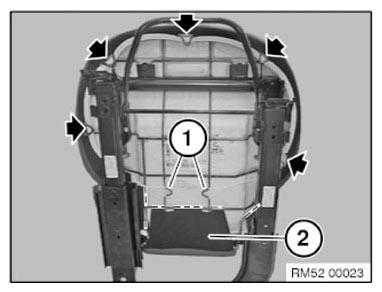

Fig 7: Locating Seat Cover Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Fig 8: Inserting Clamp Using Special Tool (52 0 050)

Courtesy of BMW OF NORTH AMERICA, INC.
