51 13 301 Removing and installing/replacing left or right roof strip
Special tools required:
Necessary preliminary work:
- Remove COVER FOR A-PILLAR (OUTSIDE)

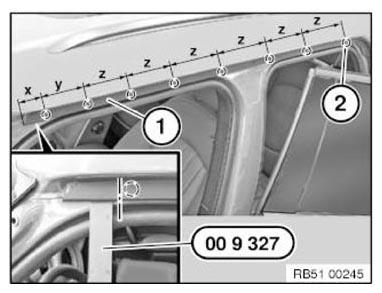

Beginning at the front, set roof strip (1) right in front of the clip position with special tool 00 9 327 and attach clip.
Distance between the applicable clip positions:
| Distance | x | y | z |
|---|---|---|---|
| in mm | 60 | 170 | 160 |
Installation note:
Begin mounting the roof strip (1) at clip position (2). Clip is used to fasten the roof strip (1).
Installation note:

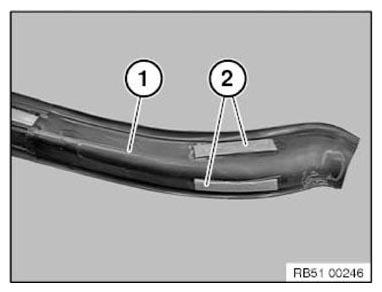

Adhesive strips (2) on the rear roof strip (1) must not be damaged or missing.
