65 12 053 Removing and installing central bass speaker on front passenger side

Necessary preliminary work:

• Remove LEFT OR RIGHT FRONT SEAT
• Remove ENTRANCE COVER STRIP ON REAR LEFT OR RIGHT .
• Remove combox holder or USB hub holder if necessary. See REPLACING COMBOBOX or REPLACING USB HUB .

Release screws.

Remove cover (1) upwards.

Fig 1: Locating Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts at marked points.

Fold up the carpet (2) as shown.

Unfasten plug connection (1) and disconnect.

Feed out central bass speaker (3) upwards.

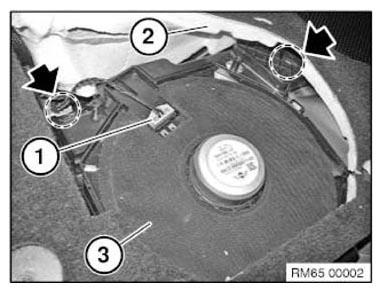

Fig 2: Identifying Central Bass Speaker, Plug Connection And Carpet

Courtesy of BMW OF NORTH AMERICA, INC.
