610200 Crimping tool

Minimum set: Measuring and testing equipment MP

NOTE: (Crimping set (basic tool)) comprising case + basic crimping tool. With this basic tool, the following matrices can be used depending on the application: 610210, 610220, 610230, 610240

Storage Location: M22 x 204

SI number: 02 02 05 (194)

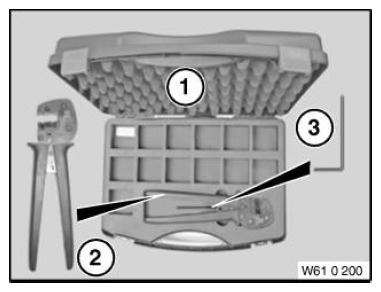

Fig 1: Identifying Crimping Tool (610200)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0495321 Case

NOTE: (plastic case) As storage system for complete set. Liquidation of existing inventory and then available only as this complete tool set (83 30 0 495 320) as of 29.11.2011

2 = 0495324 Pliers

NOTE: (crimping pliers) Basic tool for different matrices (crimp insert set)

3 = 0495360 Hexagon socket

NOTE: (Allen key) For securing individual matrices in crimping pliers. Liquidation of existing inventory and then available only as a complete tool set 61 0 200 = 83 30 0 495 320 - as of 29.11.2011
