61 61... Overview of windscreen washer system and headlight cleaning system (SRA)

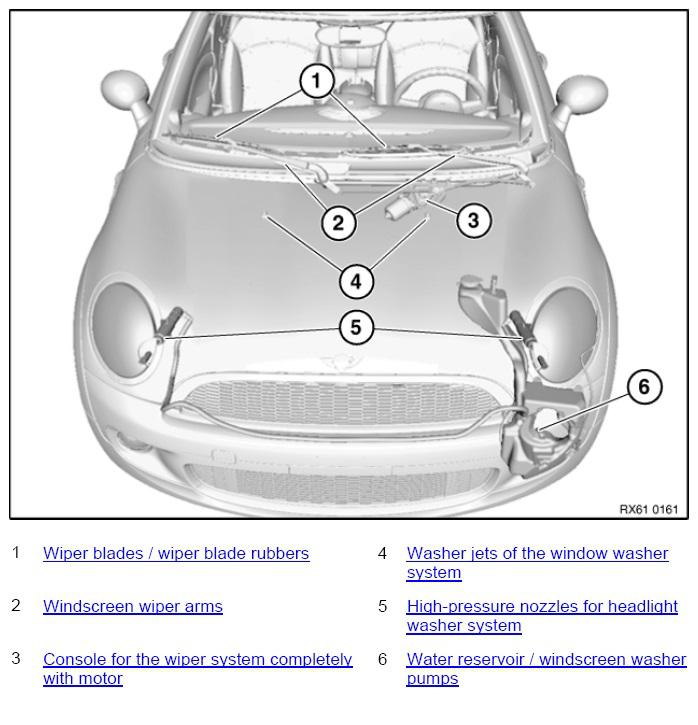

Fig 1: Identifying Windscreen Washer System, Headlight Cleaning System And Related Components
G11009607Courtesy of BMW OF NORTH AMERICA, INC.
